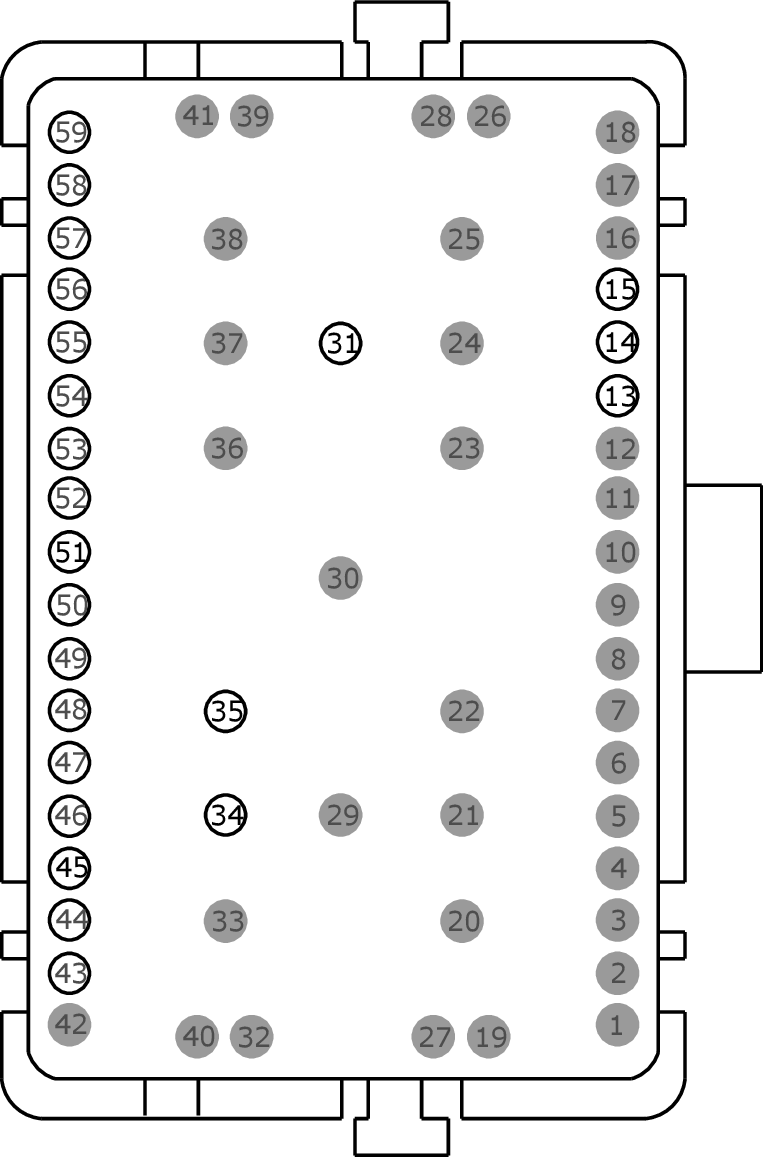

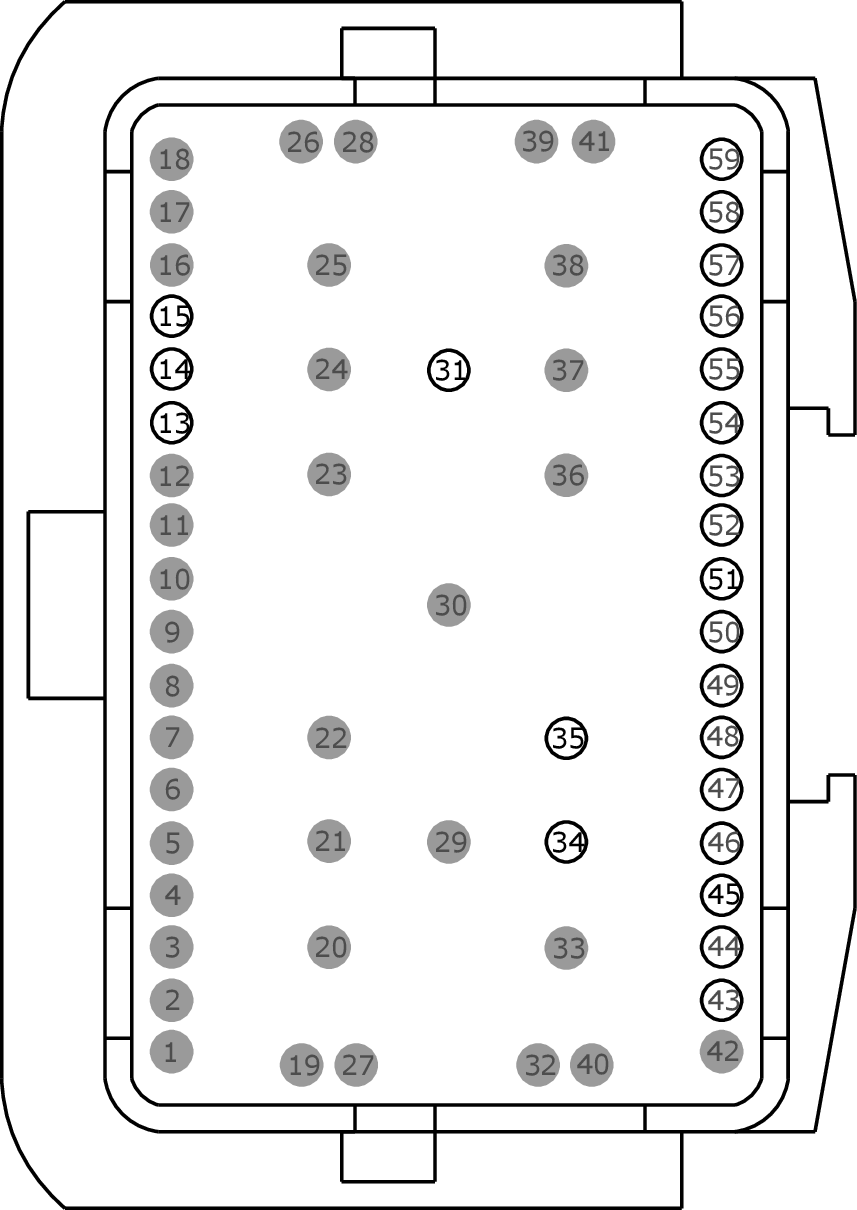

Connector End View (C3052) - INLINE
Inline: C3052
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
MALE
Harness 14D231
FEMALE
Harness 14A005
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | * | * | |
| 3 | * | * | |
| 4 | * | * | |
| 5 | * | * | 14D231 |
| 5 | SBP02 (YE-RD) | 20 | 14A005 |
| 6 | * | * | |
| 7 | * | * | |
| 8 | * | * | |
| 9 | * | * | |
| 10 | * | * | 14D231 |
| 10 | VDB06 (GY) | 26 | 14A005 |
| 10 | VDB06 (GY-OG) | 20 | 14A005 |
| 11 | * | * | 14D231 |
| 11 | VDB07 (VT) | 26 | 14A005 |
| 11 | VDB07 (VT-OG) | 20 | 14A005 |
| 12 | * | * | |
| 13 | CPP22 (GY-BN) | 18 | 14D231 |
| 13 | CPP22 (GY-BN) | 20 | 14A005 |
| 14 | CPP04 (GY) | 18 | 14D231 |
| 14 | CPP04 (GY) | 20 | 14A005 |
| 15 | CPP18 (BN-VT) | 20 | 14D231 |
| 15 | VPP08 (WH) | 20 | 14A005 |
| 16 | * | * | |
| 17 | * | * | |
| 18 | * | * | |
| 19 | * | * | |
| 20 | * | * | |
| 21 | * | * | 14D231 |
| 21 | SBP02 (YE-RD) | 20 | 14A005 |
| 22 | * | * | |
| 23 | * | * | |
| 24 | * | * | |
| 25 | * | * | |
| 26 | * | * | |
| 27 | * | * | |
| 28 | * | * | |
| 29 | * | * | |
| 30 | * | * | |
| 31 | GD382 (BK-GY) | 12 | 14A005 |
| 31 | GD906 (BK-GY) | 14 | 14D231 |
| 32 | * | * | |
| 33 | * | * | 14A005 |
| 33 | CPP01 (WH-OG) | 18 | 14D231 |
| 34 | CPP23 (VT-GY) | 18 | 14D231 |
| 34 | CPP23 (VT-GY) | 20 | 14A005 |
| 35 | CPP03 (GN-VT) | 18 | 14D231 |
| 35 | CPP03 (GN-VT) | 20 | 14A005 |
| 35 | CPP03 (VT) | 20 | 14A005 |
| 36 | * | * | |
| 37 | * | * | |
| 38 | * | * | 14A005 |
| 38 | CPP02 (BN) | 18 | 14D231 |
| 39 | * | * | |
| 40 | * | * | 14A005 |
| 40 | CPP09 (VT-OG) | 20 | 14D231 |
| 41 | * | * | 14A005 |
| 41 | CPP10 (BN-BU) | 20 | 14D231 |
| 42 | * | * | |
| 43 | * | * | |
| 44 | * | * | |
| 45 | RPP07 (YE-GN) | 20 | 14D231 |
| 45 | VPP17 (VT-BN) | 20 | 14A005 |
| 46 | * | * | |
| 47 | * | * | |
| 48 | * | * | |
| 49 | * | * | |
| 50 | * | * | |
| 51 | CPP05 (WH-VT) | 20 | 14A005 |
| 51 | RPS12 (YE-VT) | 20 | 14D231 |
| 52 | * | * | 14D231 |
| 52 | GD382 (BK-GY) | 20 | 14A005 |
| 53 | * | * | |
| 54 | * | * | |
| 55 | * | * | |
| 56 | * | * | |
| 57 | * | * | 14A005 |
| 57 | LPP06 (YE-BU) | 20 | 14D231 |
| 58 | * | * | |
| 59 | * | * |
