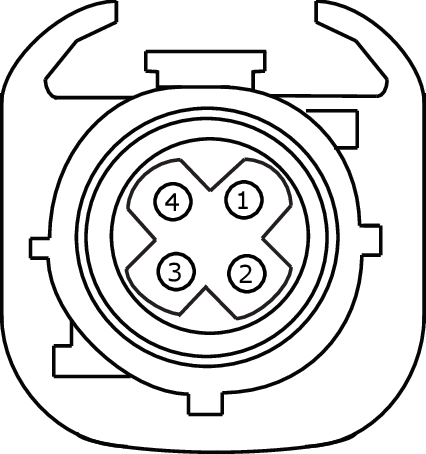

Connector End View (C2383D) - SYNC MODULE (APIM)

Connector: C2383D

Description

SYNC MODULE (APIM)

Color

BLUE

Harness

14401

Base Part #

#N/A

Service Pigtail

Not Available

GFDW80186

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (*)	*	COMMUNICATION +
2	* (*)	*	POWER
3	* (*)	*	COMMUNICATION -
4	* (*)	*	GROUND
