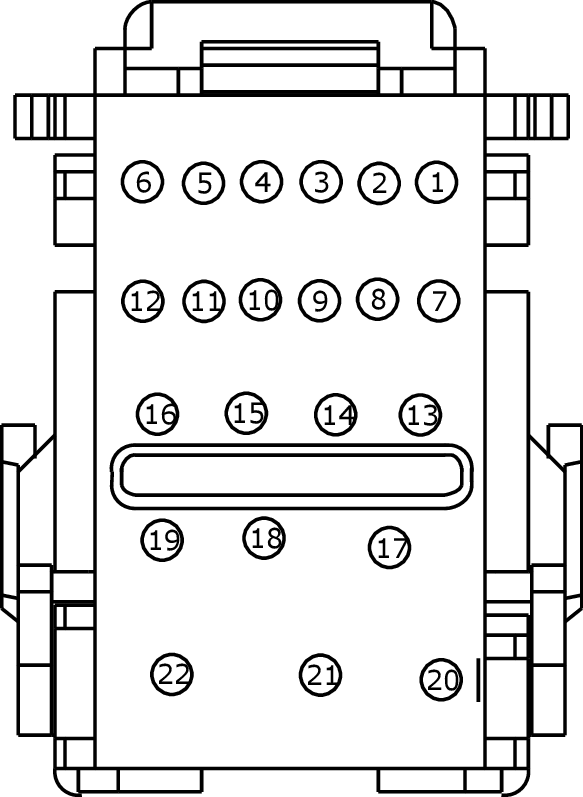

Connector End View (C2280H) - BODY CONTROL MODULE (BCM)

Connector: C2280H

Description

BODY CONTROL MODULE (BCM)

Color

Harness

14401

Base Part #

#N/A

Service Pigtail

Not Available

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCB08 (VT-WH)	22	SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN
2	CBP23 (BN-YE)	22	FUSE - 23 OR CIRCUIT BREAKER
2	CBP23 (BU-OG)	22	FUSE - 23 OR CIRCUIT BREAKER	Lincoln
3	*	*	Not Used
4	CBP35 (YE-GY)	22	FUSE - 35 OR CIRCUIT BREAKER
4	CBP35 (YE-GY)	18	FUSE - 35 OR CIRCUIT BREAKER	Ford China
5	CBP20 (YE-VT)	22	FUSE - 20 OR CIRCUIT BREAKER
5	CBP33 (WH-BN)	22	FUSE - 33 OR CIRCUIT BREAKER	Ford China
6	CBP21 (BU-GY)	22	FUSE - 21 OR CIRCUIT BREAKER
7	CBP35 (YE-GY)	18	FUSE - 35 OR CIRCUIT BREAKER
8	SBP13 (GY-RD)	22	FUSE - 13 OR CIRCUIT BREAKER
9	SBP14 (BN-RD)	20	FUSE - 14 OR CIRCUIT BREAKER	Ford China
9	SBP14 (VT-RD)	22	FUSE - 14 OR CIRCUIT BREAKER	Ford China
9	SBP32 (BN-RD)	20	FUSE - 32 OR CIRCUIT BREAKER	Lincoln
9	SBP32 (VT-RD)	20	FUSE - 32 OR CIRCUIT BREAKER	Ford
10	SBP12 (GN-RD)	20	FUSE - 12 OR CIRCUIT BREAKER
11	SBP17 (RD)	22	FUSE - 17 OR CIRCUIT BREAKER
12	SBP18 (GY-OG)	18	FUSE - 18 OR CIRCUIT BREAKER	Lincoln
12	SBP18 (YE-RD)	22	FUSE - 18 OR CIRCUIT BREAKER
12	SBP29 (YE-RD)	22	FUSE - 29 OR CIRCUIT BREAKER	Ford China
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	CBP37 (WH)	14	FUSE - 37 OR CIRCUIT BREAKER
17	*	*	Not Used
18	*	*	Not Used
19	SBP15 (WH-RD)	22	FUSE - 15 OR CIRCUIT BREAKER
19	SBP15 (WH-RD)	20	FUSE - 15 OR CIRCUIT BREAKER
20	*	*	Not Used
21	*	*	Not Used
22	CBP33 (WH-BN)	18	FUSE - 33 OR CIRCUIT BREAKER	Ford China
22	CBP33 (WH-BN)	16	FUSE - 33 OR CIRCUIT BREAKER	Lincoln
22	CBP33 (WH-BN)	18	FUSE - 33 OR CIRCUIT BREAKER
