Active Park Assist Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

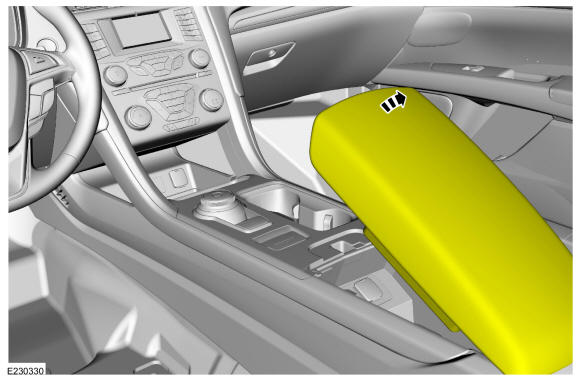

  1. Open the floor console stowage bin lid.
    GFD195315Courtesy of FORD MOTOR COMPANY

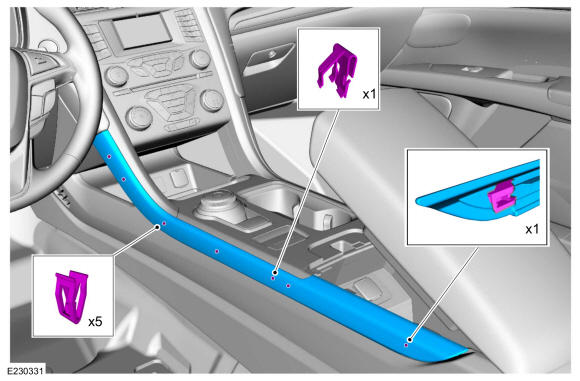

  2. On both sides. Detach the clips and remove the floor console upper side finish panels.
    GFD195333Courtesy of FORD MOTOR COMPANY

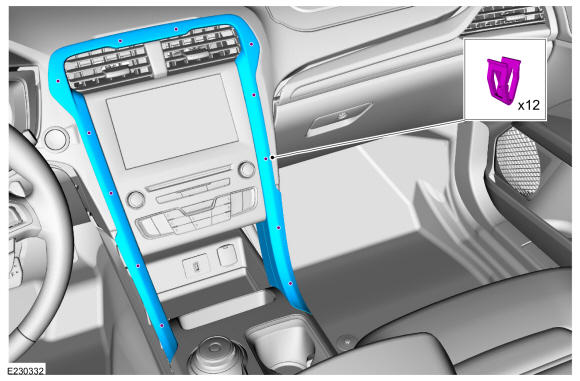

  3. Detach the clips and remove the instrument panel center finish panel.
    GFD195334Courtesy of FORD MOTOR COMPANY
  4. Remove the screws, detach the clips, disconnect the electrical connectors and remove the upper floor console finish panel.
    GFD193634Courtesy of FORD MOTOR COMPANY

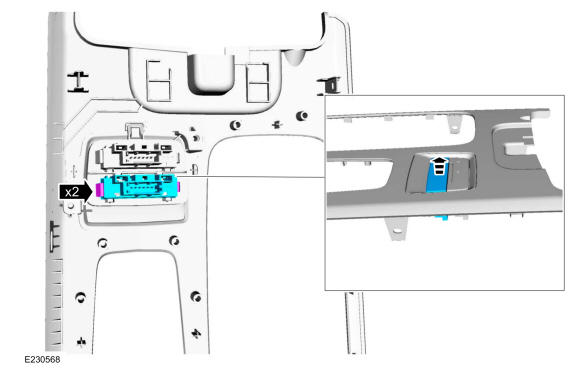

  5. Release the tabs and remove the active park assist switch.
    GFD195794Courtesy of FORD MOTOR COMPANY
