Rear Wheel Studs: Removal

  1. Remove the wheel bearing and wheel hub. Refer to: Wheel Bearing and Wheel Hub - FWD . Refer to: Wheel Bearing and Wheel Hub - AWD .
  2. Press the wheel stud from the wheel bearing and wheel hub flange. Use the General Equipment: Hydraulic Press
    GFD197269Courtesy of FORD MOTOR COMPANY

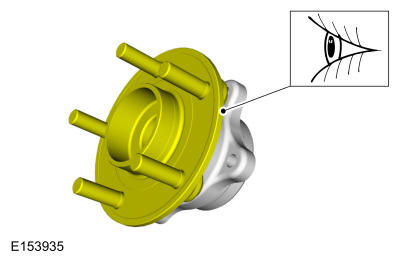

  3. Visual check. Inspect the wheel bearing and wheel hub flange for corrosion or damage. Replace as necessary.
GFD197270Courtesy of FORD MOTOR COMPANY
