Rear Wheel Bearing and Rear Wheel Hub - FWD: Installation

Vehicles with bearing mounted wheel speed sensor

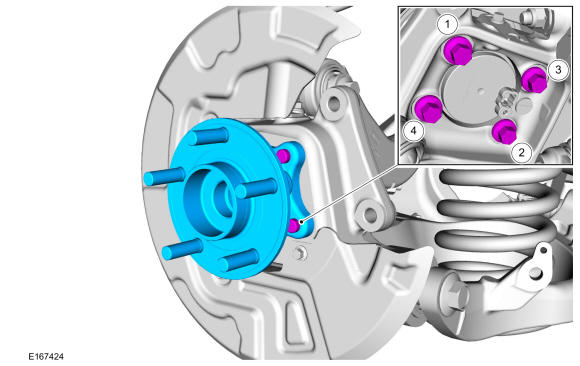

1. Install the wheel bearing and wheel hub and install the new wheel bearing and wheel hub retainers.

   Torque: 98 lb.ft (133 Nm)

   Courtesy of FORD MOTOR COMPANY

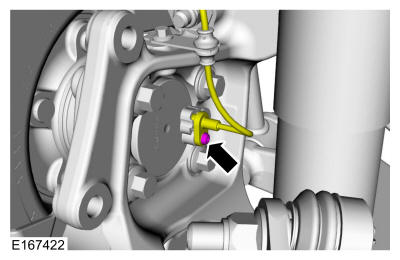

2. Position the wheel speed sensor and install the wheel speed sensor screw.

   Torque: 48 lb.in (5.4 Nm)

   Courtesy of FORD MOTOR COMPANY

   Vehicles with knuckle mounted wheel speed sensor

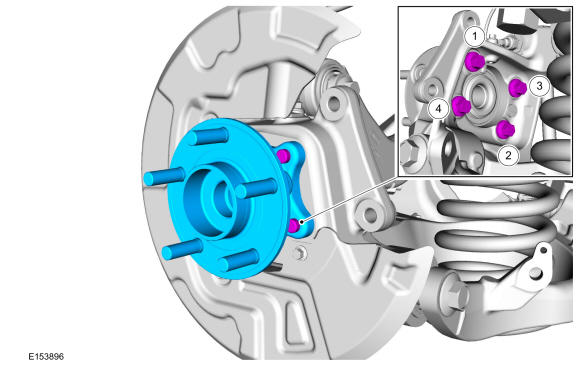

3. Install the wheel bearing and wheel hub and install the new wheel bearing and wheel hub retainers.

   Torque: 98 lb.ft (133 Nm)

   Fig 1: Wheel Hub Tightening Sequence

   Courtesy of FORD MOTOR COMPANY

   All vehicles

4. Install the brake disc. Refer to: Brake Disc .
