Windshield wiper motor, left front

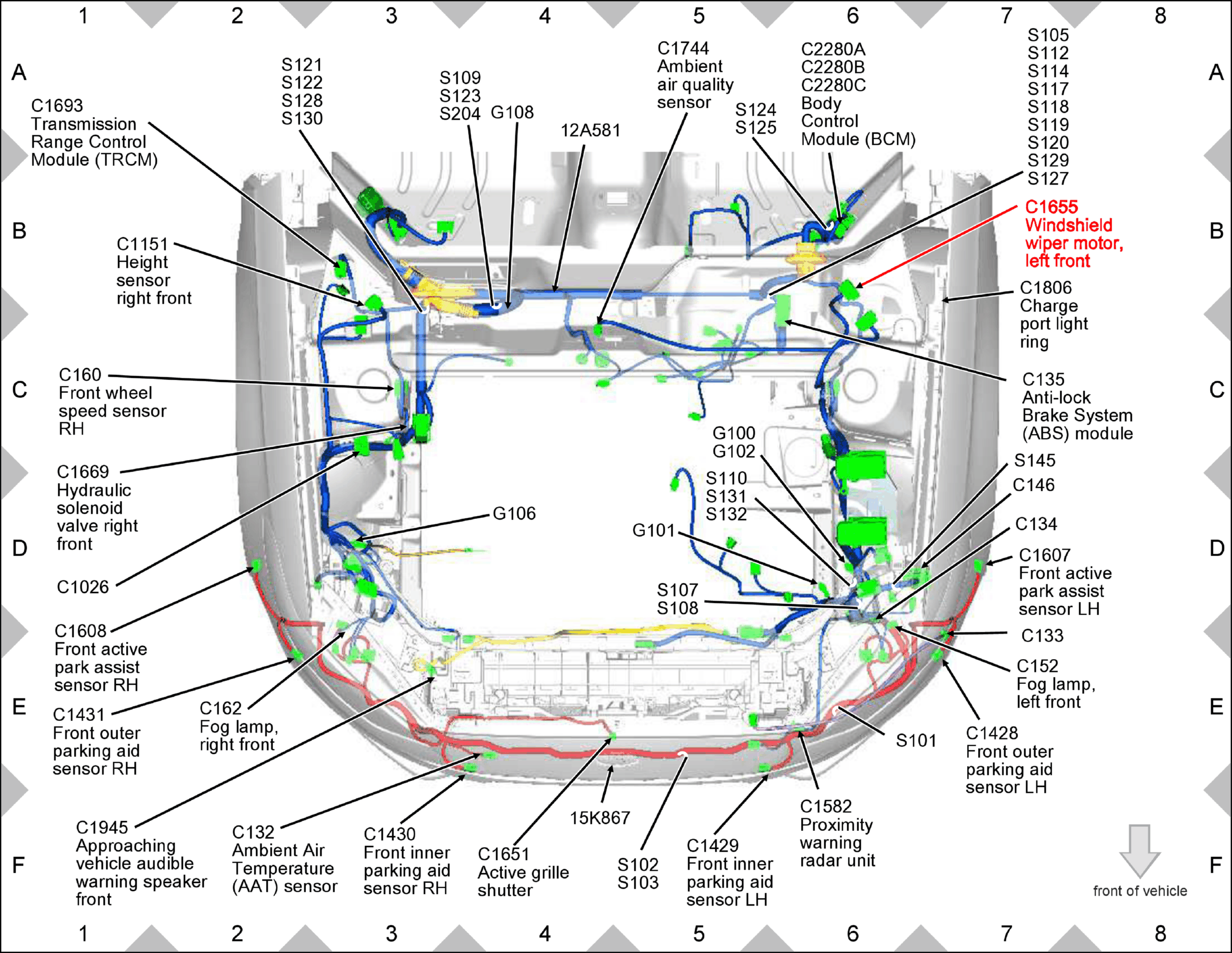

Fig 1: Windshield wiper motor, left front Components Location

GFDW81813

Courtesy of FORD MOTOR COMPANY
