Transmission Range Control Module (TRCM)

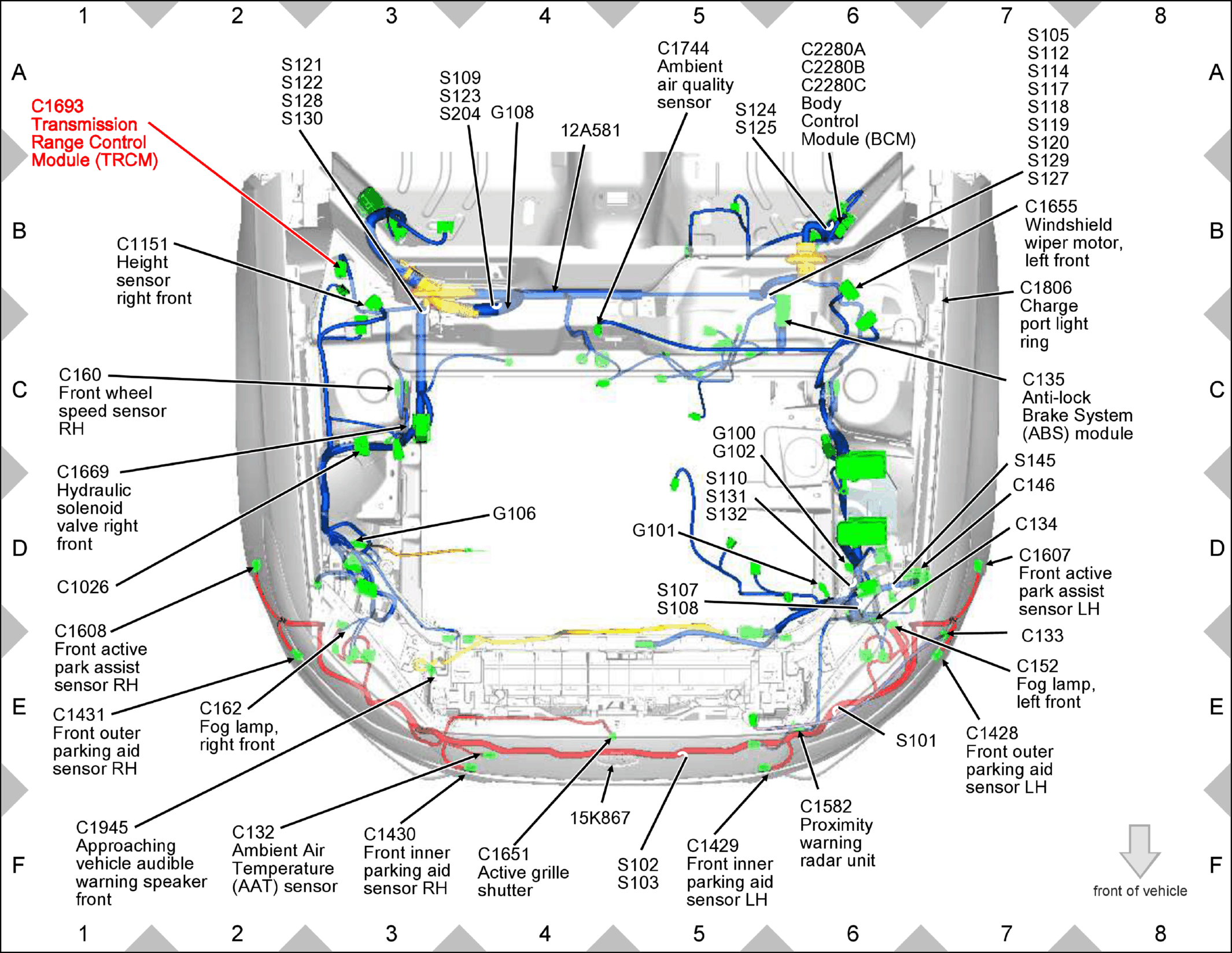

Fig 1: Transmission Range Control Module (TRCM) Components Location

GFDW81803

Courtesy of FORD MOTOR COMPANY
