Side impact sensor LH C-pillar (Fusion)

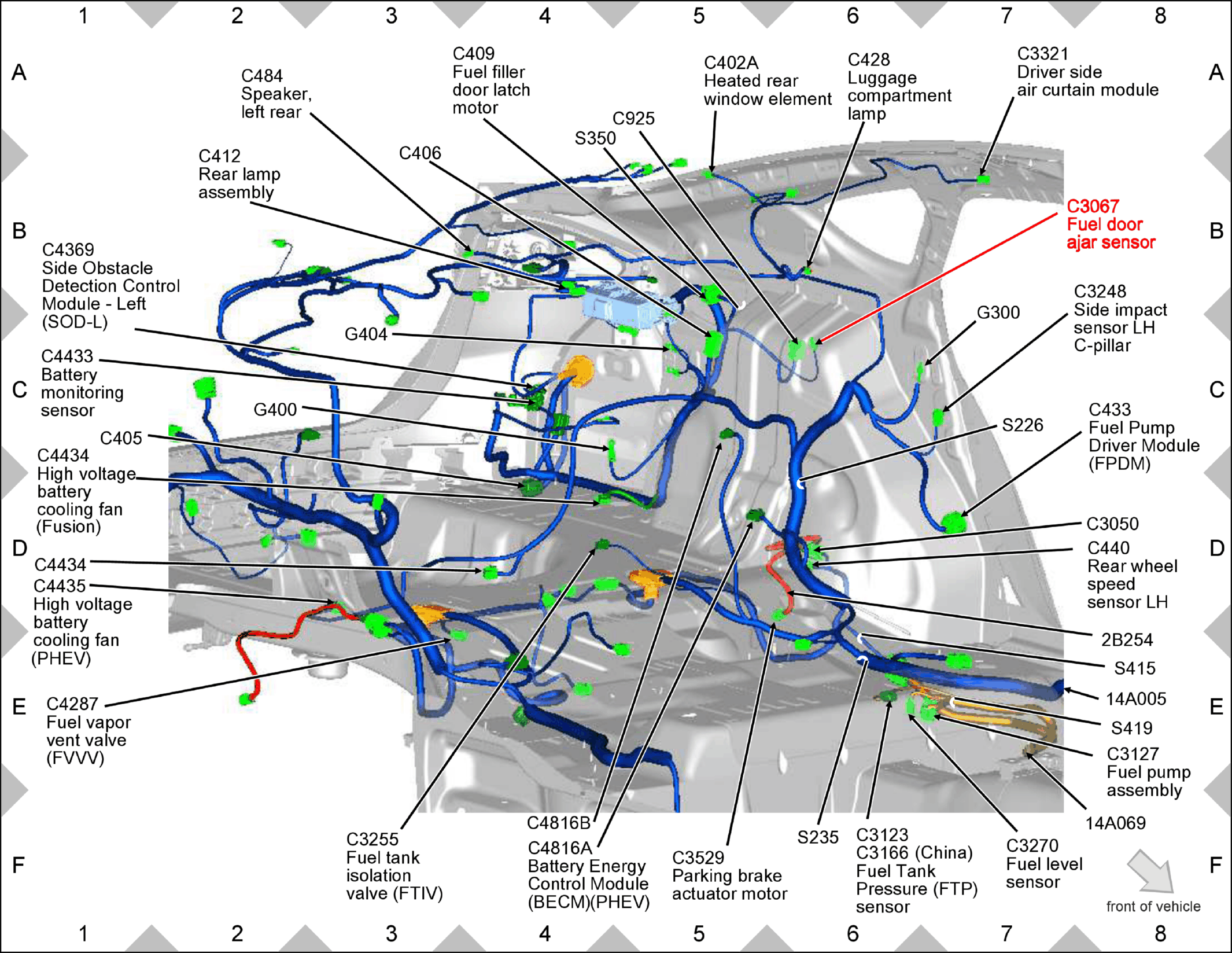

Fig 1: Side impact sensor LH C-pillar (Fusion) Components Location

GFDW81771

Courtesy of FORD MOTOR COMPANY
