Side airbag module, right front

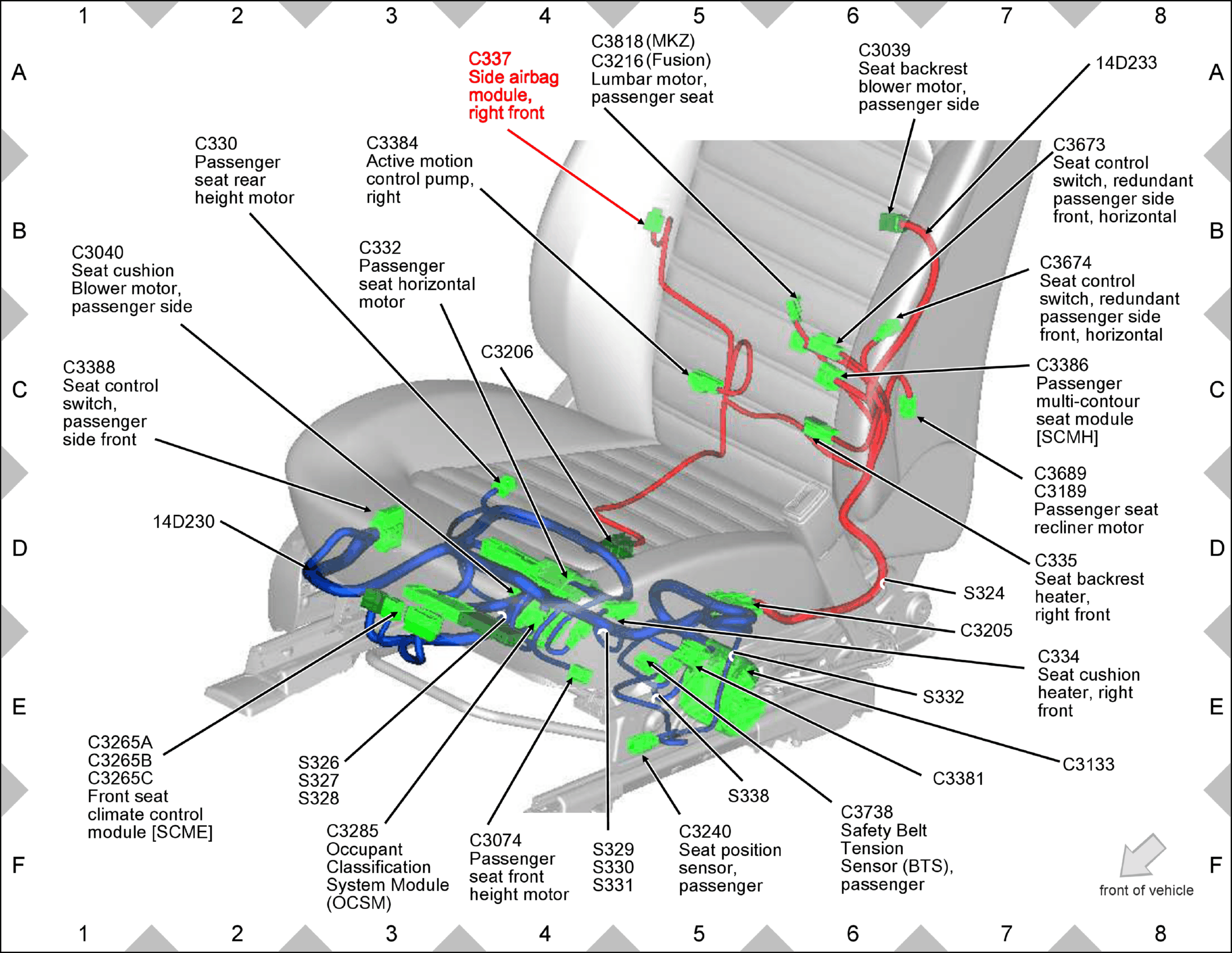

Fig 1: Side airbag module, right front Components Location

GFDW81770

Courtesy of FORD MOTOR COMPANY
