Side Obstacle Detection Control Module - Right (SOD-R) (Fusion)

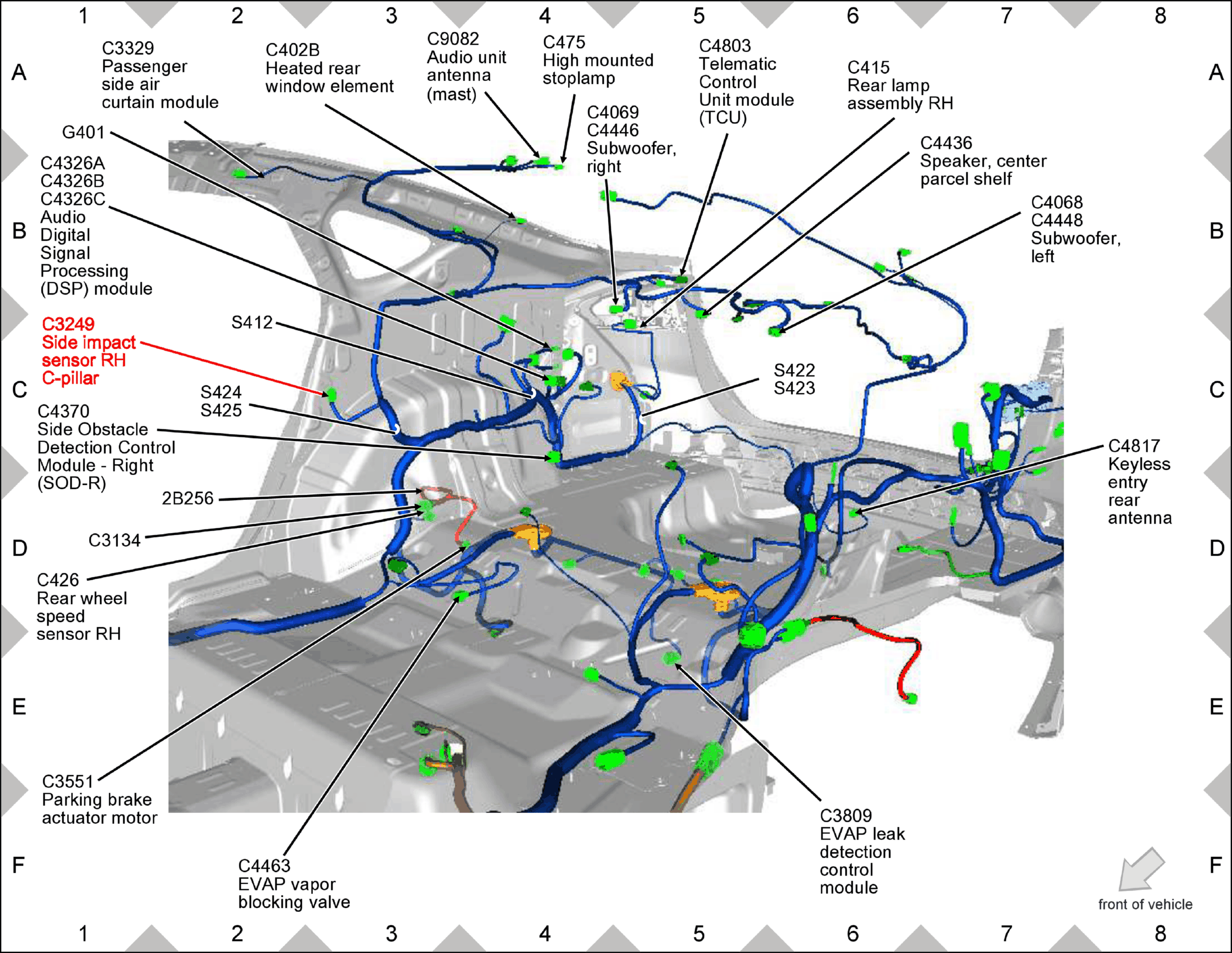

Fig 1: Side Obstacle Detection Control Module - Right (SOD-R) (Fusion) Components Location

GFDW81777

Courtesy of FORD MOTOR COMPANY
