Secondary On Board Diagnostic Module C (SOBDMC) / Transmission Control Module (TCM)

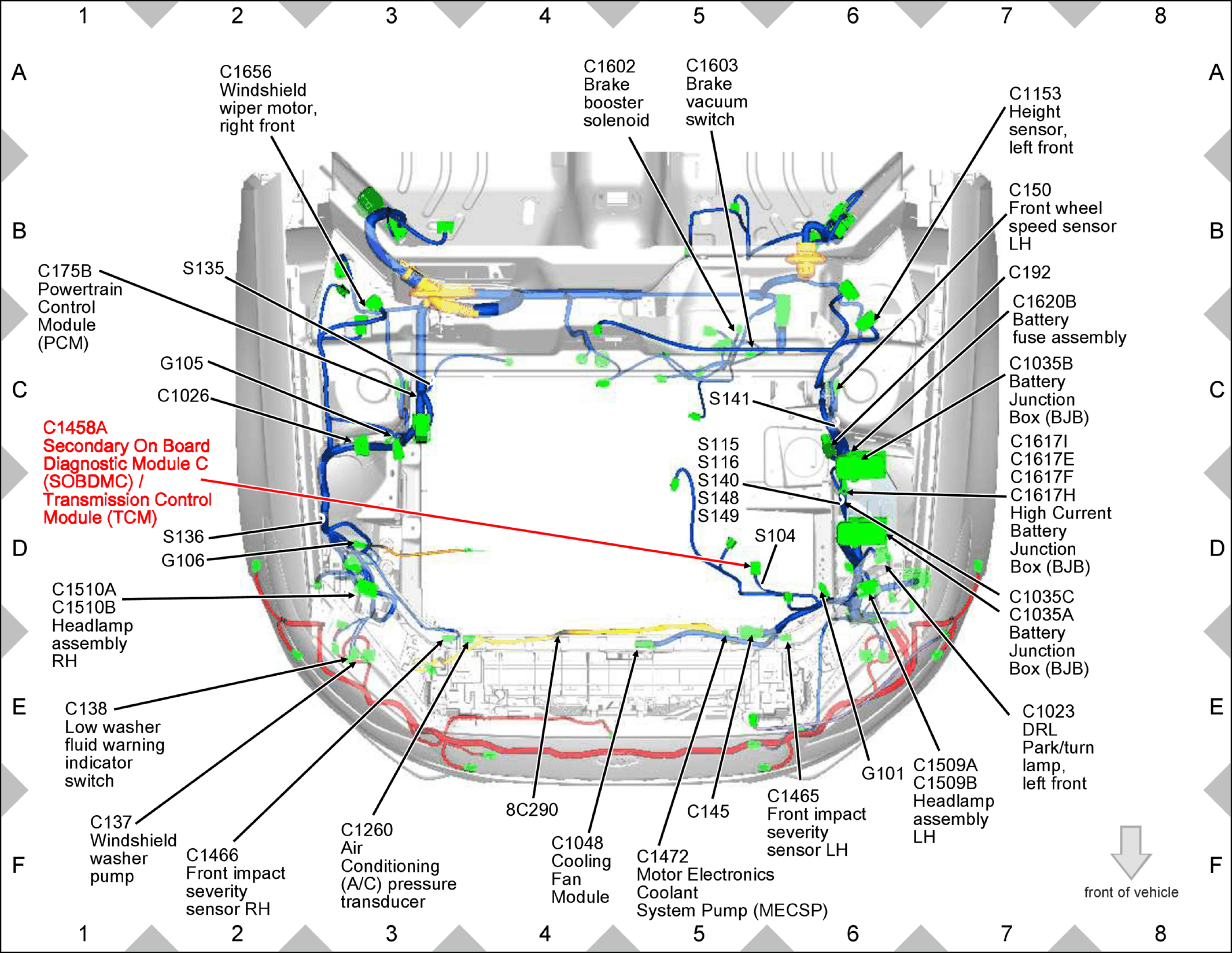

Fig 1: Secondary On Board Diagnostic Module C (SOBDMC) / Transmission Control Module (TCM) Components Location
GFDW81768Courtesy of FORD MOTOR COMPANY
