Home >> Ford >> 2018 >> Fusion Energi Titanium >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts - Fusion (Hybrid/ENERGI) >> Component Location Charts >> Seat position sensor, passenger

Seat position sensor, passenger

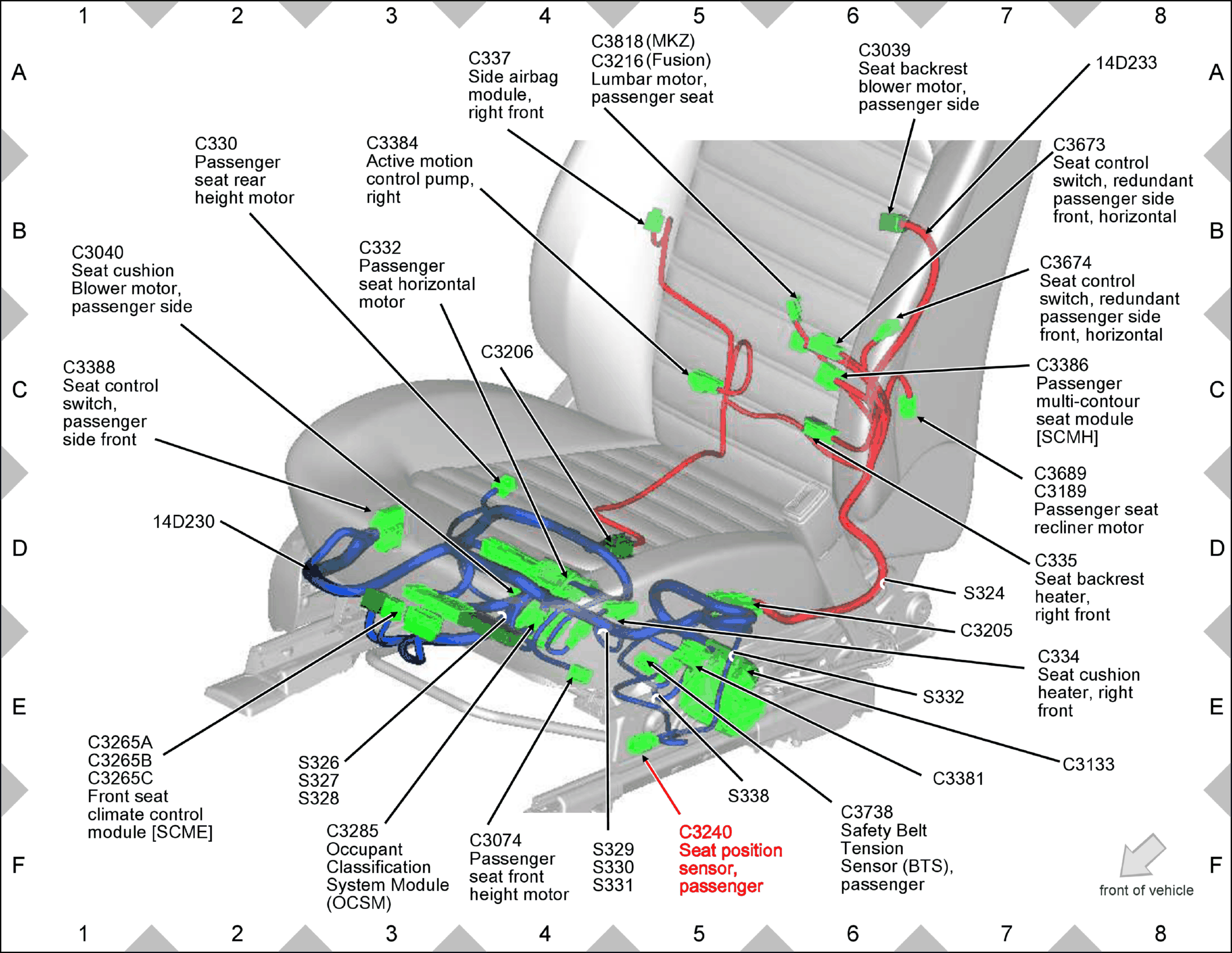

Fig 1: Seat position sensor, passenger Components Location

GFDW81767

Courtesy of FORD MOTOR COMPANY
