OEM Component Harness Location Charts - Fusion (Hybrid/ENERGI)
>>
Component Location Charts
>>
Seat position sensor, driver
Seat position sensor, driver

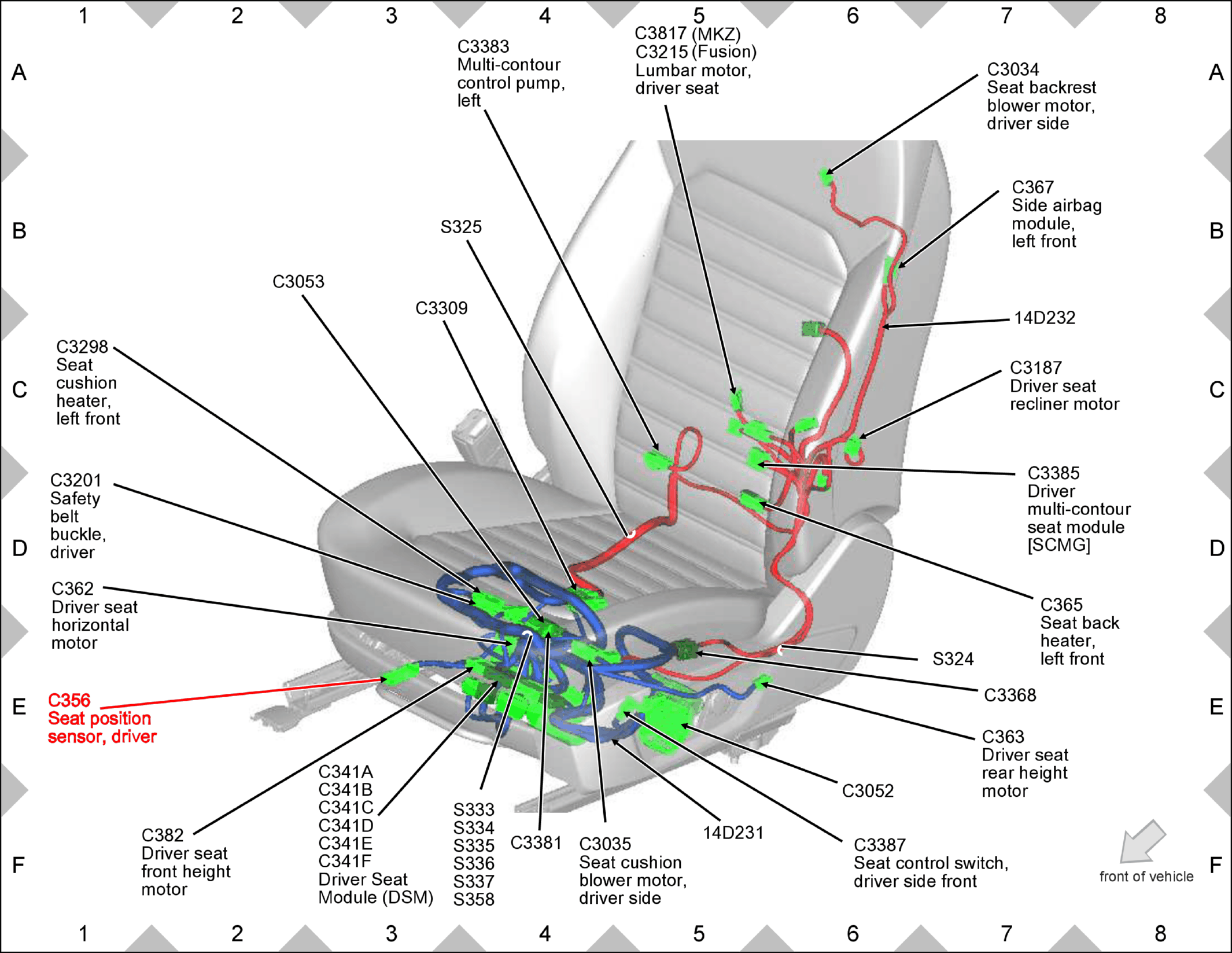

Fig 1: Seat position sensor, driver Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
