Seat control switch, driver side front

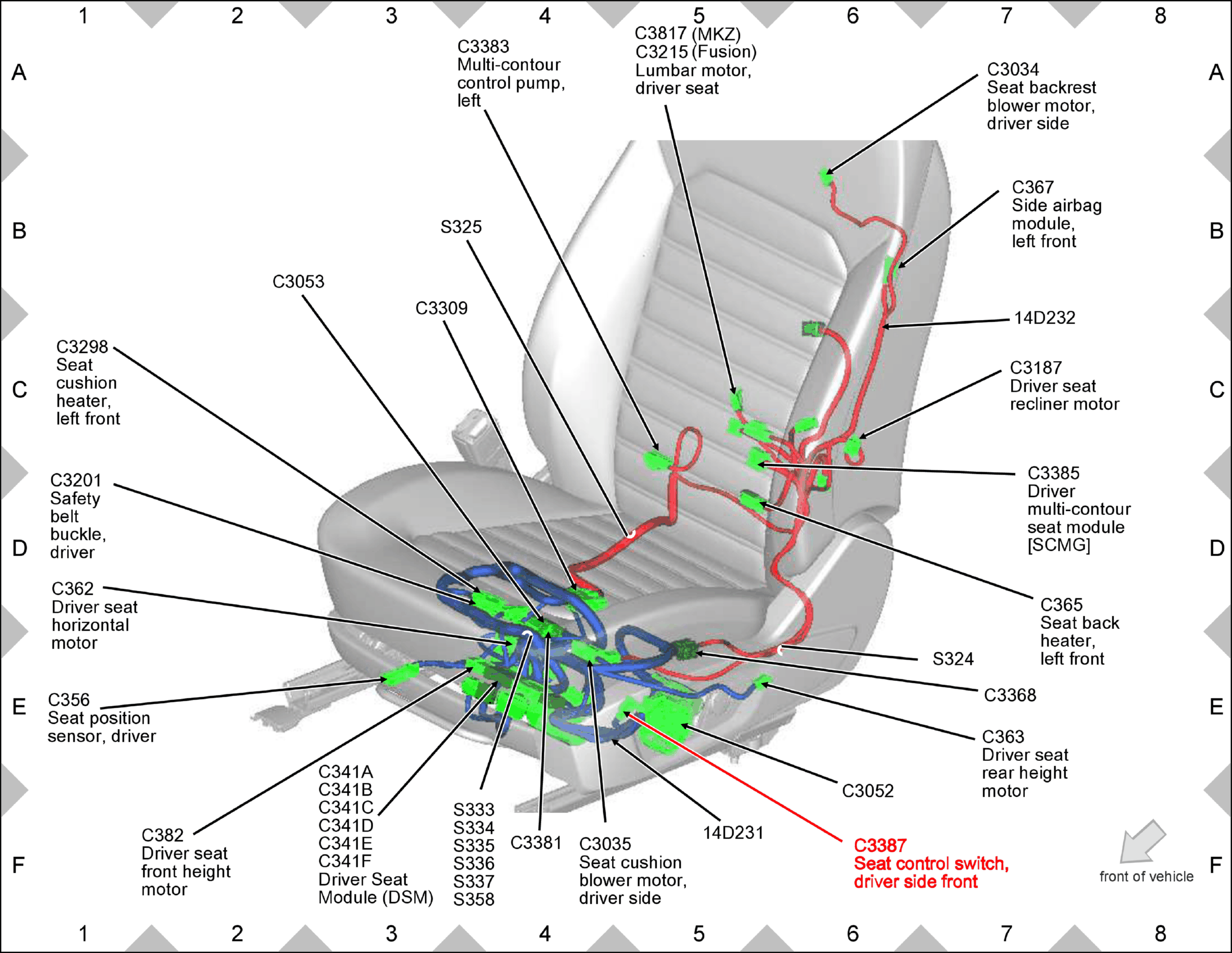

Fig 1: Seat control switch, driver side front Components Location

GFDW81757

Courtesy of FORD MOTOR COMPANY
