OEM Component Harness Location Charts - Fusion (Hybrid/ENERGI)
>>
Component Location Charts
>>
Seat backrest heater, right front
Seat backrest heater, right front

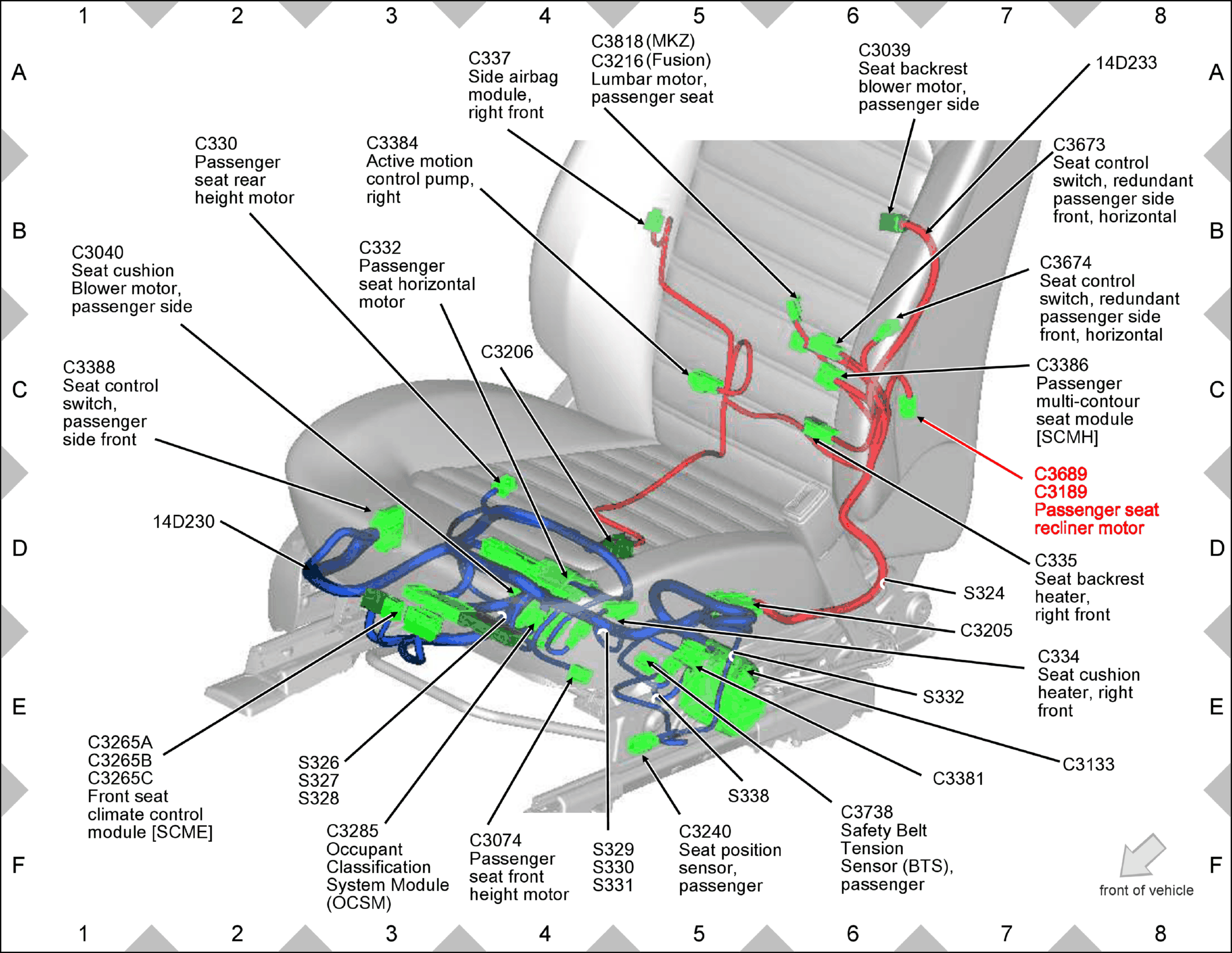

Fig 1: Seat backrest heater, right front Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
