Seat backrest blower motor, driver side

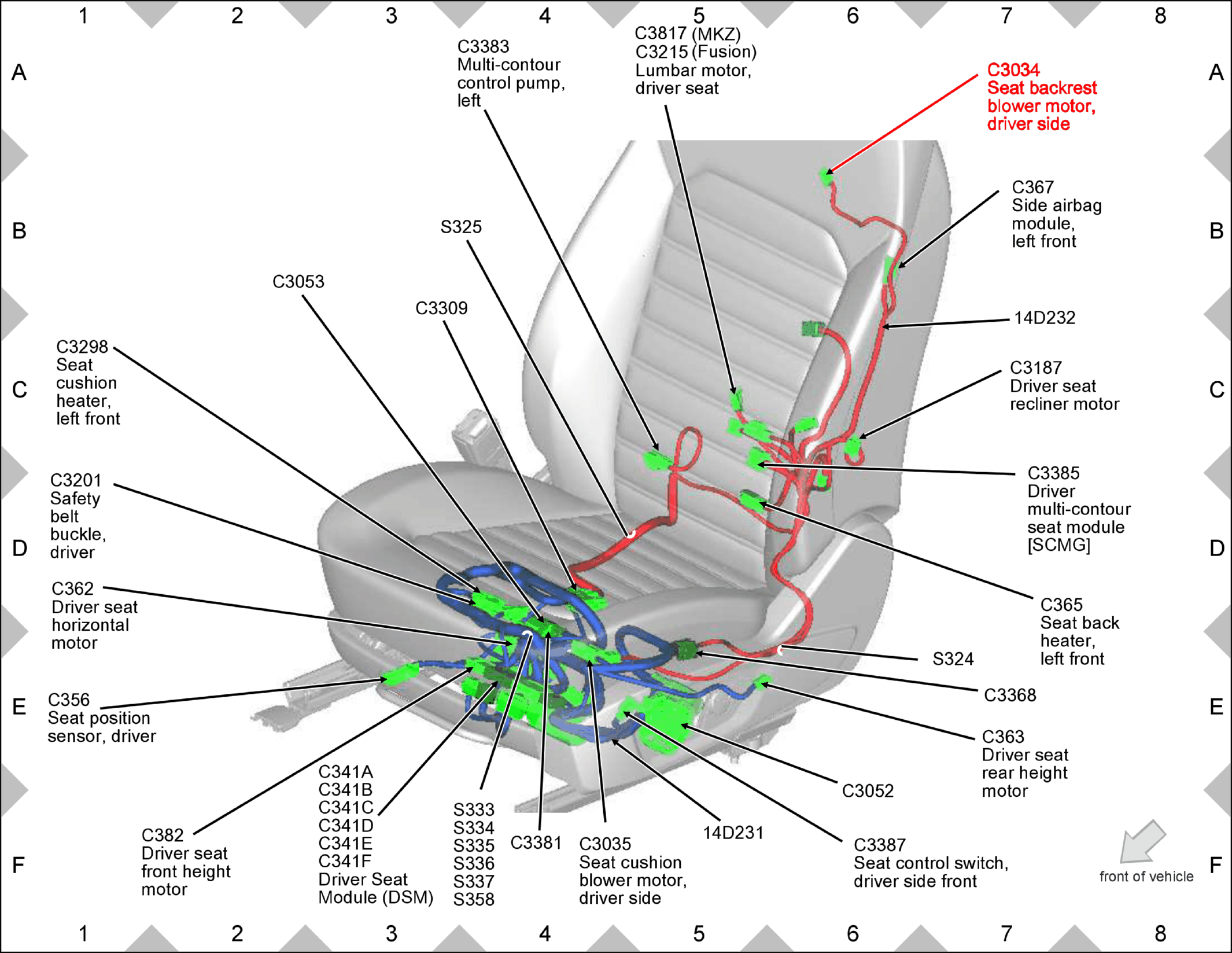

Fig 1: Seat backrest blower motor, driver side Components Location

GFDW81751

Courtesy of FORD MOTOR COMPANY
