Safety belt inflator, 2nd row, right

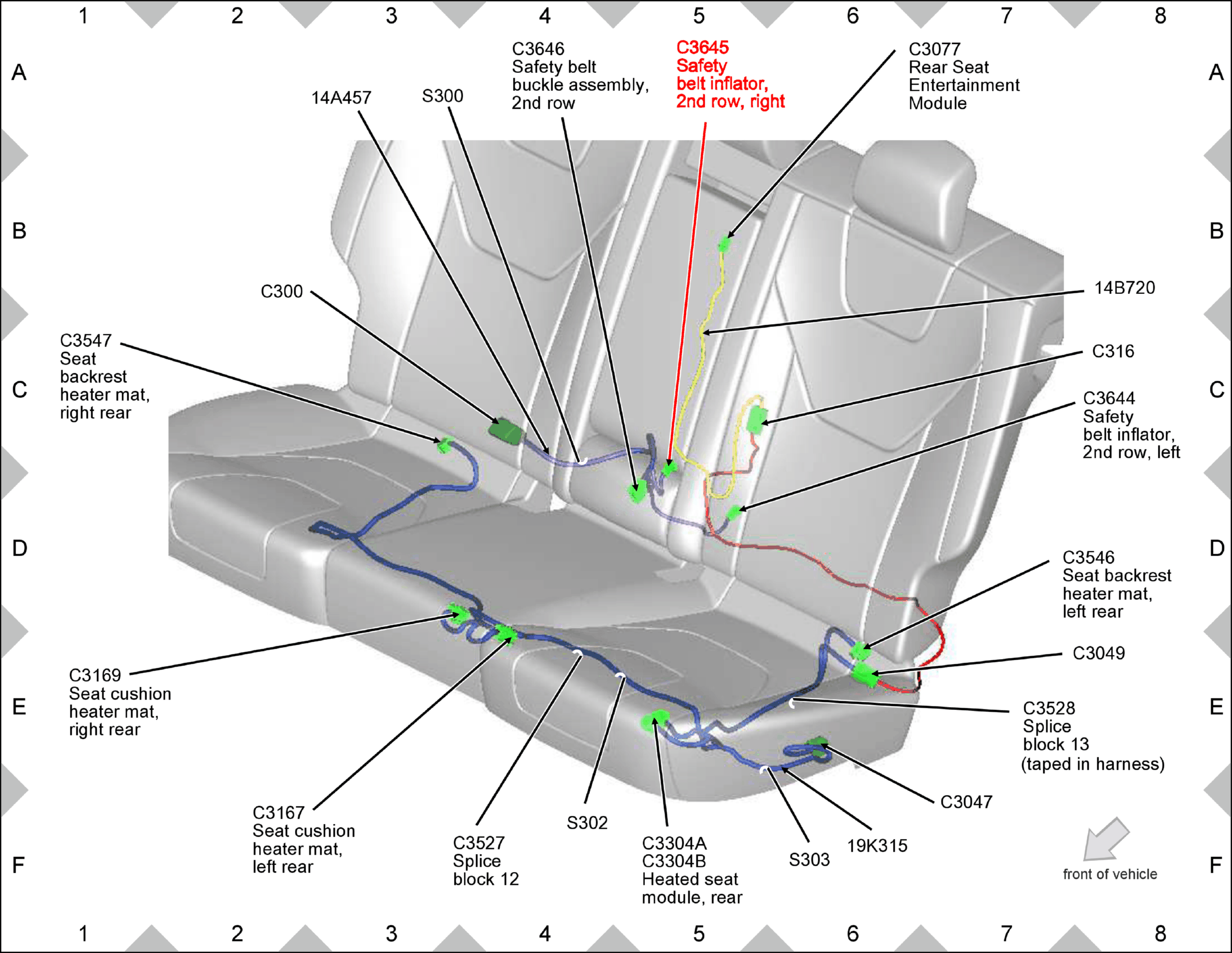

Fig 1: Safety belt inflator, 2nd row, right Components Location

GFDW81748

Courtesy of FORD MOTOR COMPANY
