Rear outer parking aid sensor LH/Center (MKZ)

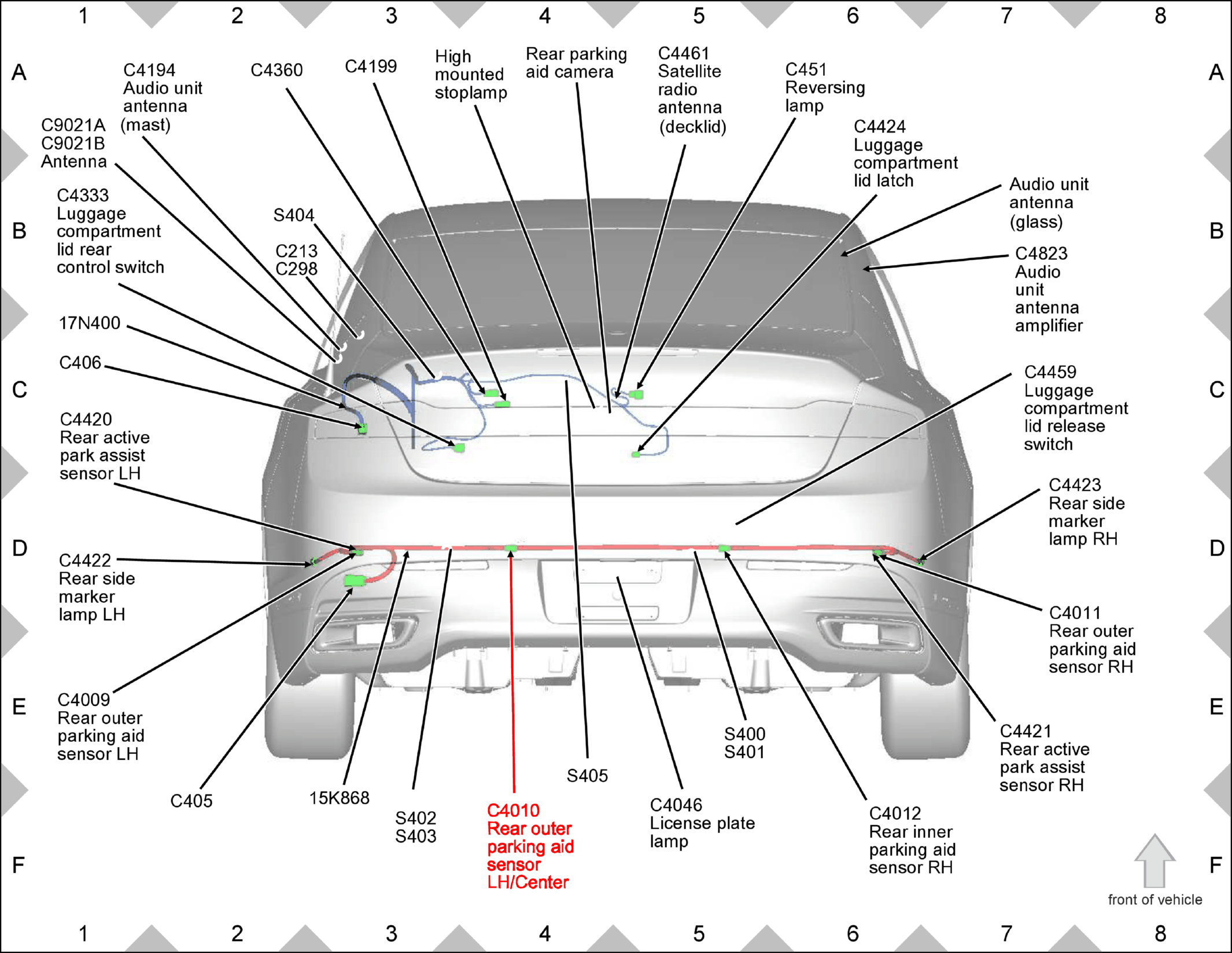

Fig 1: Rear outer parking aid sensor LH/Center (MKZ) Components Location

GFDW81720

Courtesy of FORD MOTOR COMPANY
