OEM Component Harness Location Charts - Fusion (Hybrid/ENERGI)
>>
Component Location Charts
>>
Rear lamp assembly (Fusion)
Rear lamp assembly (Fusion)

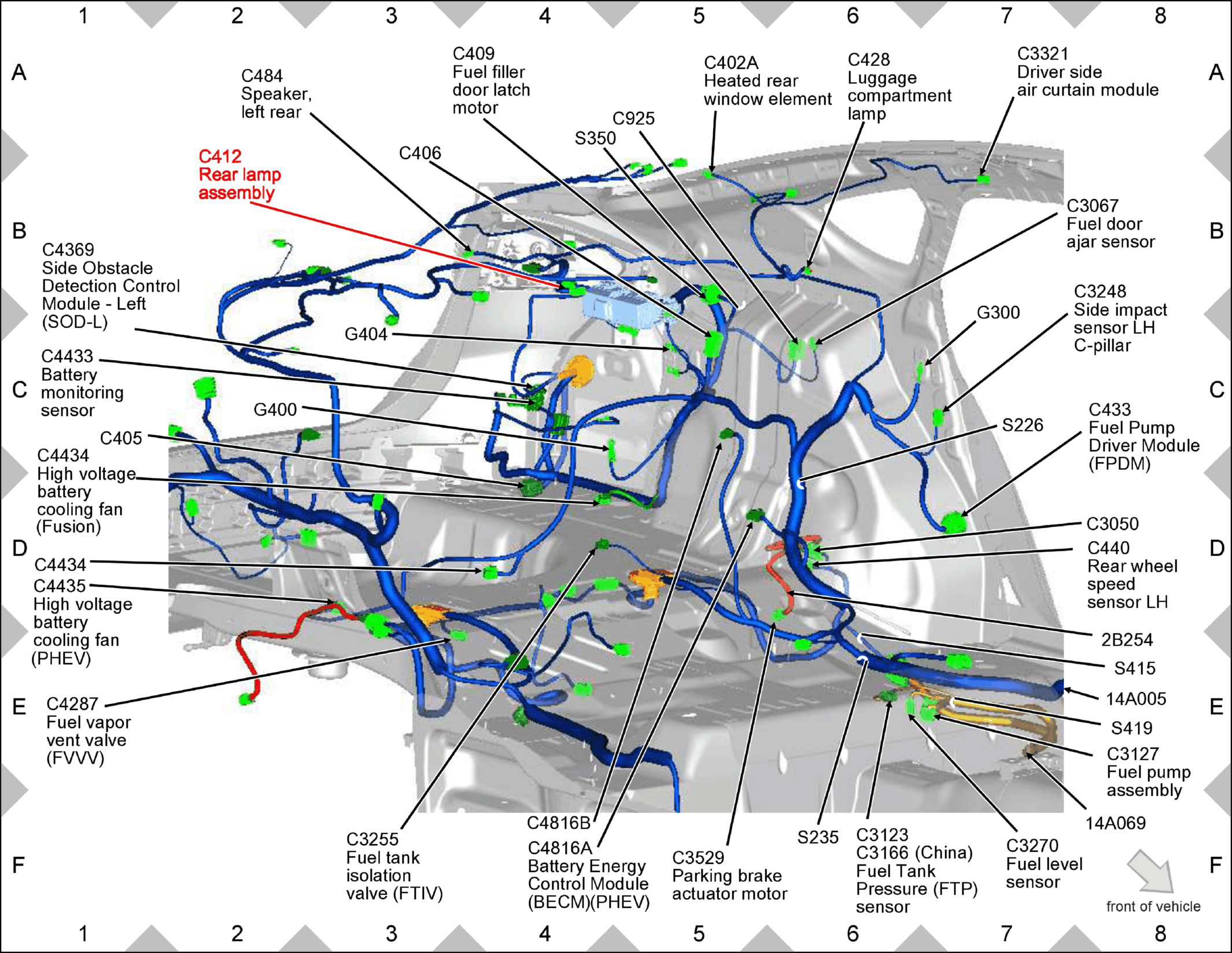

Fig 1: Rear lamp assembly (Fusion) Components Location
Courtesy of FORD MOTOR COMPANY
