Rear inner parking aid sensor LH/Center (Fusion)

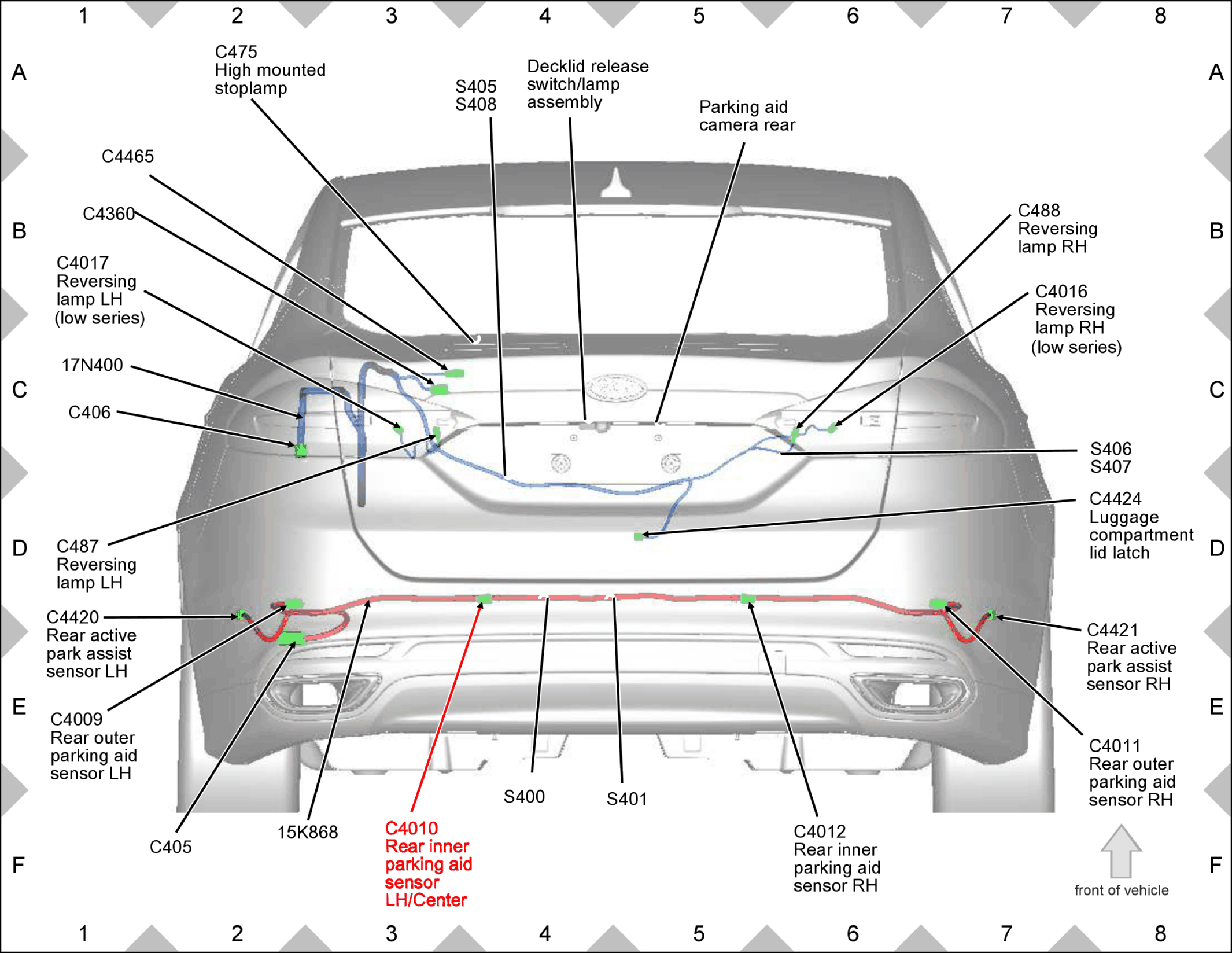

Fig 1: Rear inner parking aid sensor LH/Center (Fusion) Components Location

GFDW81713

Courtesy of FORD MOTOR COMPANY
