Rear door window control switch LH (Fusion)

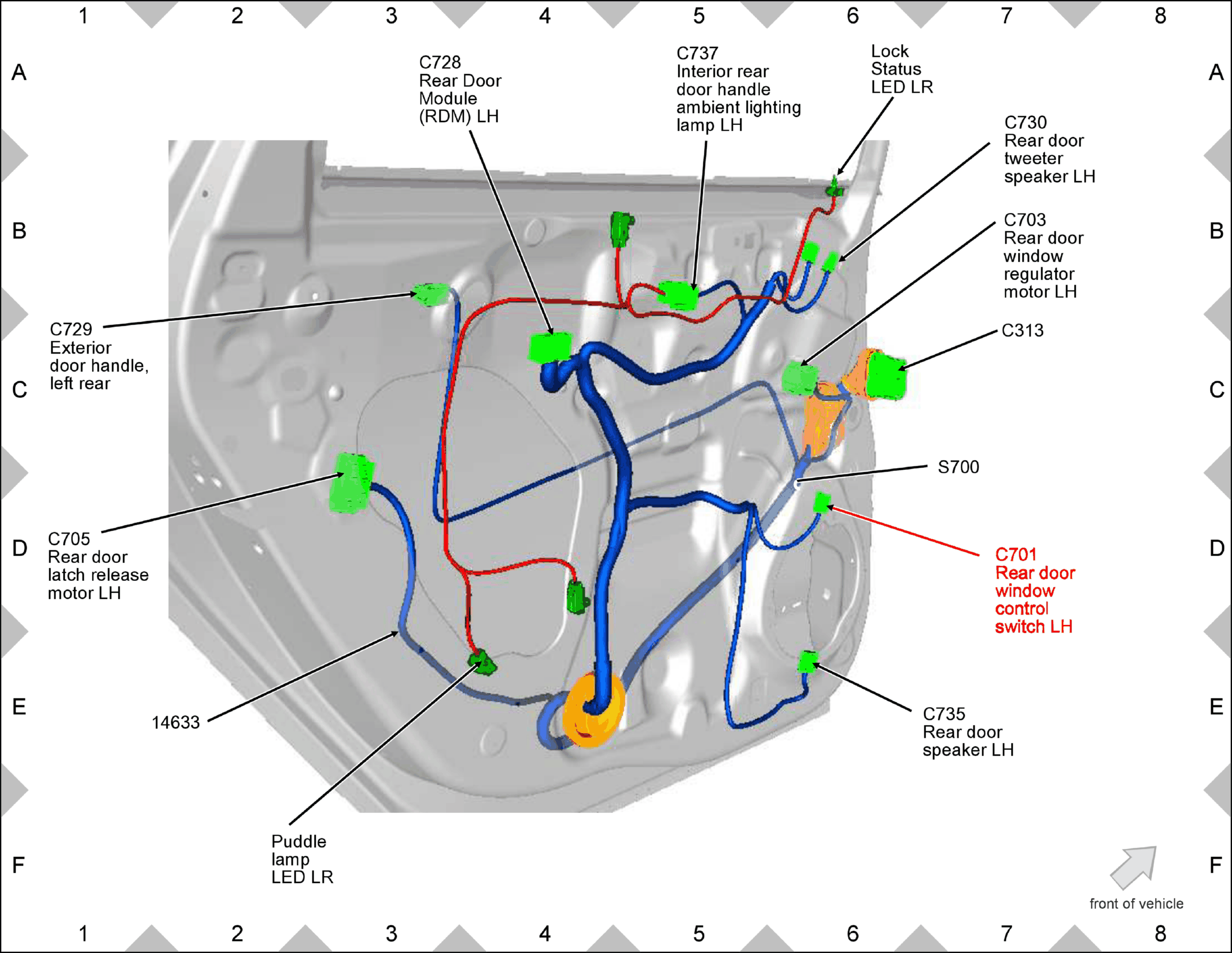

Fig 1: Rear door window control switch LH (Fusion) Components Location

GFDW81702

Courtesy of FORD MOTOR COMPANY
