OEM Component Harness Location Charts - Fusion (Hybrid/ENERGI)
>>
Component Location Charts
>>
Rear Door Module (RDM) LH (MKZ)
Rear Door Module (RDM) LH (MKZ)

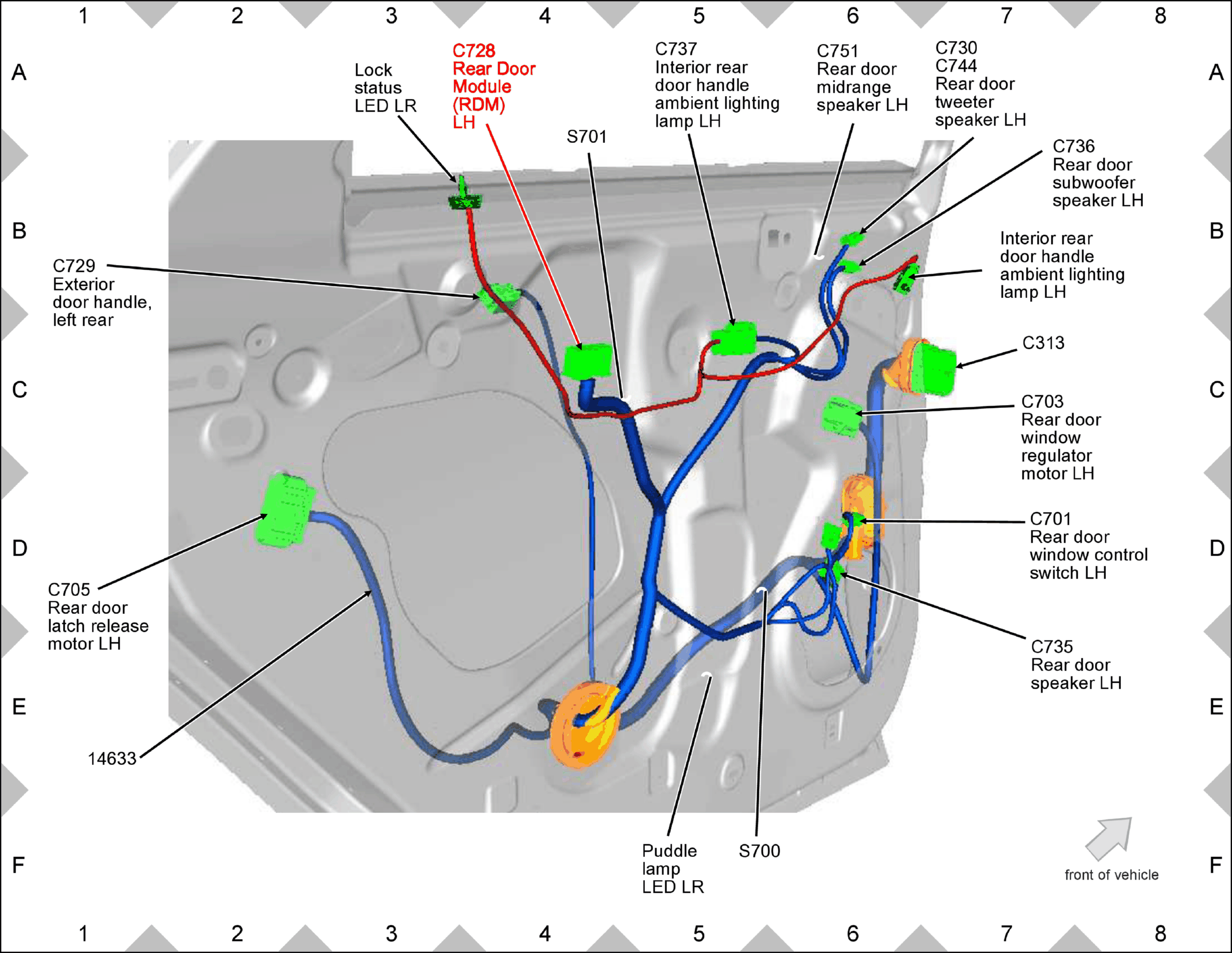

Fig 1: Rear Door Module (RDM) LH (MKZ) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
