Rear Door Module (RDM) LH (Fusion)
Rear Door Module (RDM) LH (Fusion)

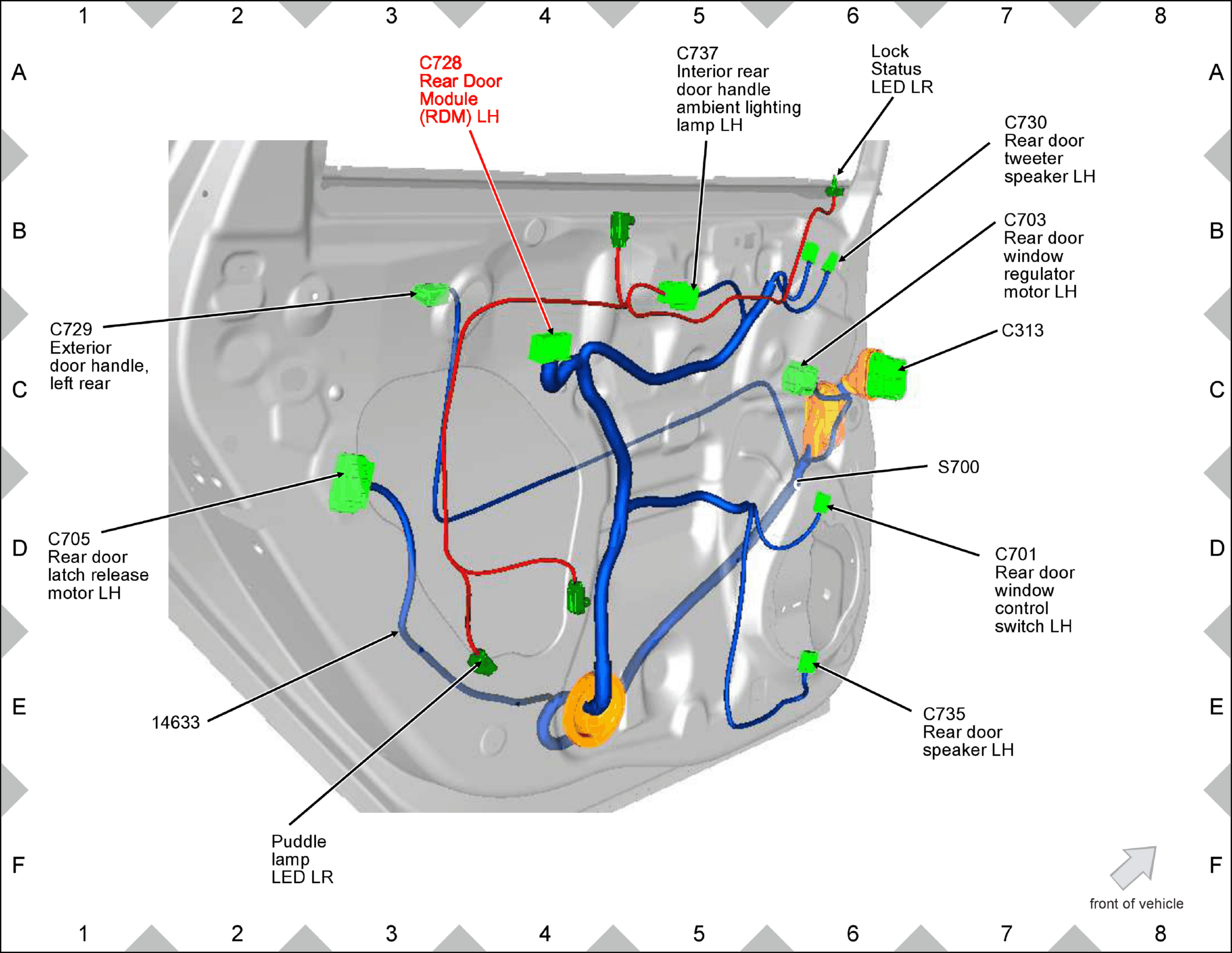

Fig 1: Rear Door Module (RDM) LH (Fusion) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
