Passive anti-theft system front antenna (MKZ)

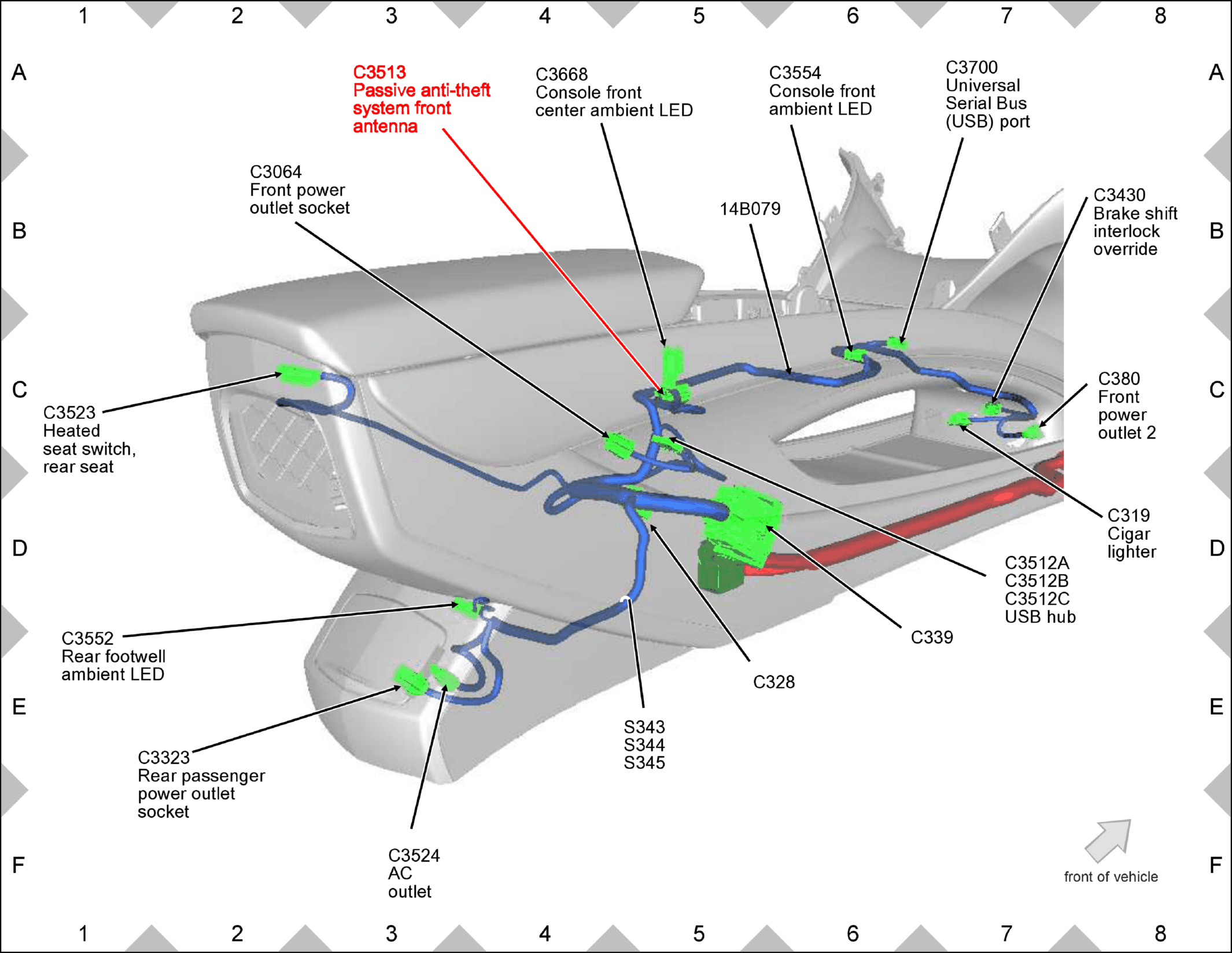

Fig 1: Passive anti-theft system front antenna (MKZ) Components Location

GFDW81674

Courtesy of FORD MOTOR COMPANY
