Passenger multi-contour seat module [SCMH]

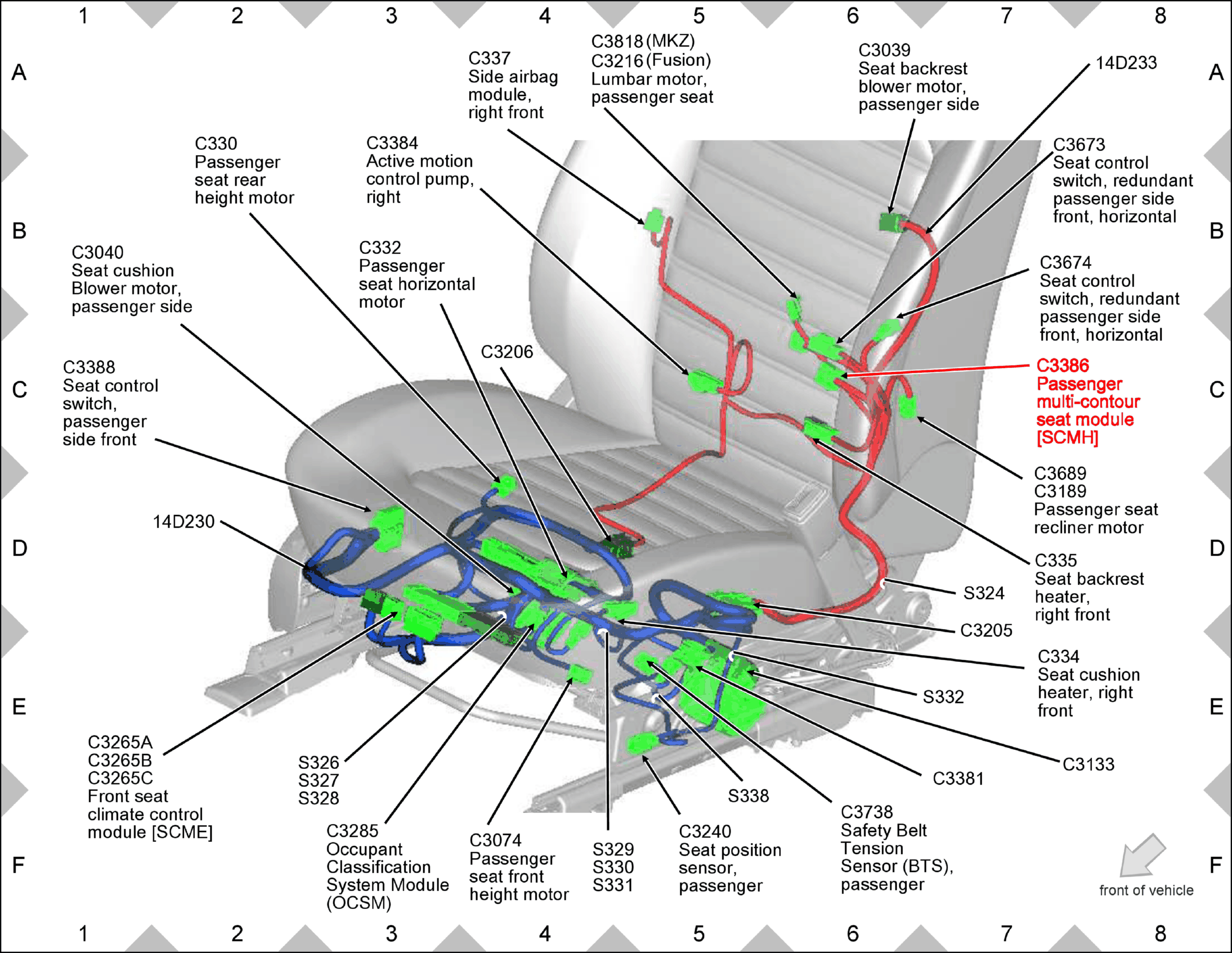

Fig 1: Passenger multi-contour seat module [SCMH] Components Location

GFDW81667

Courtesy of FORD MOTOR COMPANY
