Occupant Classification System Module (OCSM)

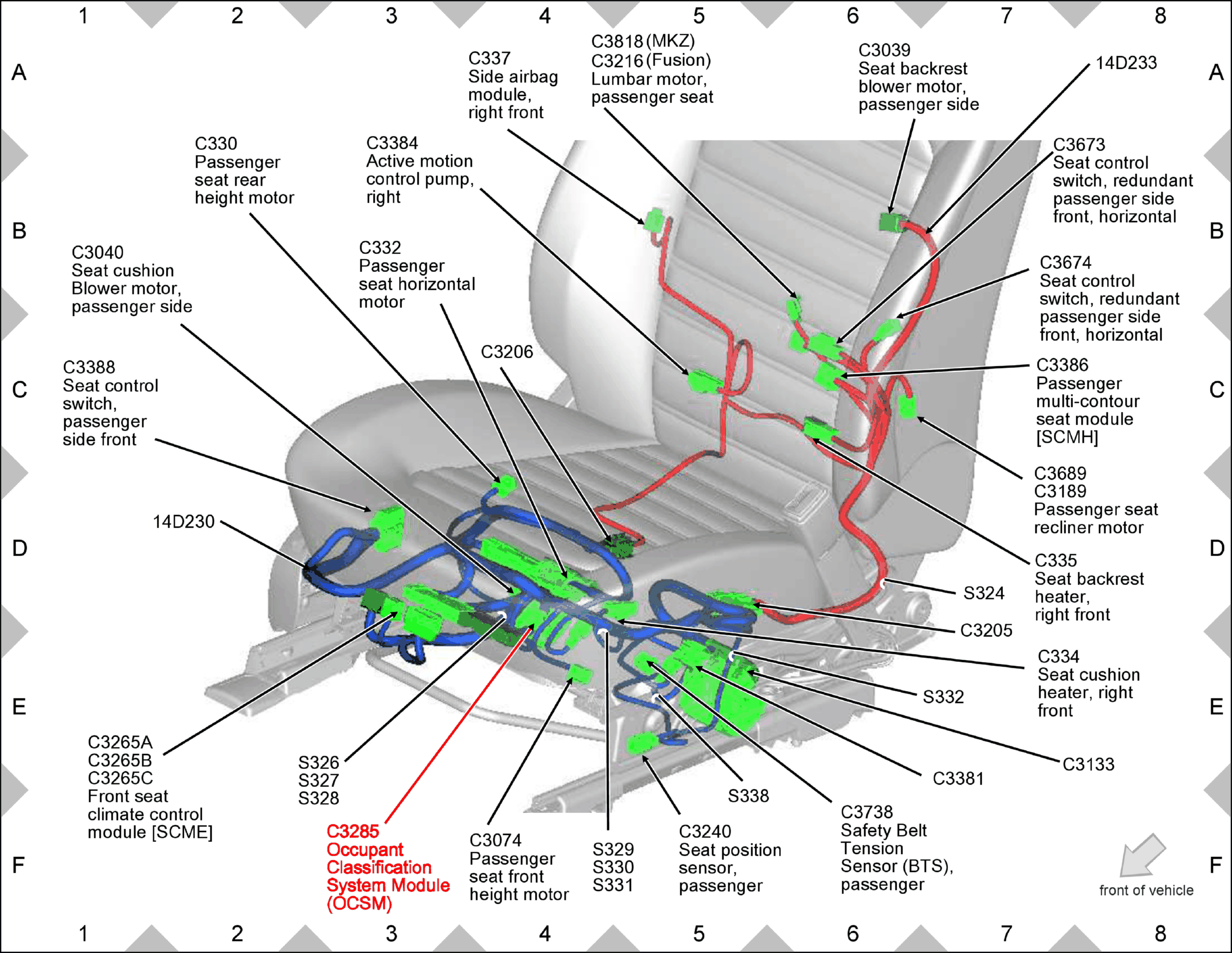

Fig 1: Occupant Classification System Module (OCSM) Components Location

GFDW81651

Courtesy of FORD MOTOR COMPANY
