Component Location Charts: Microphone

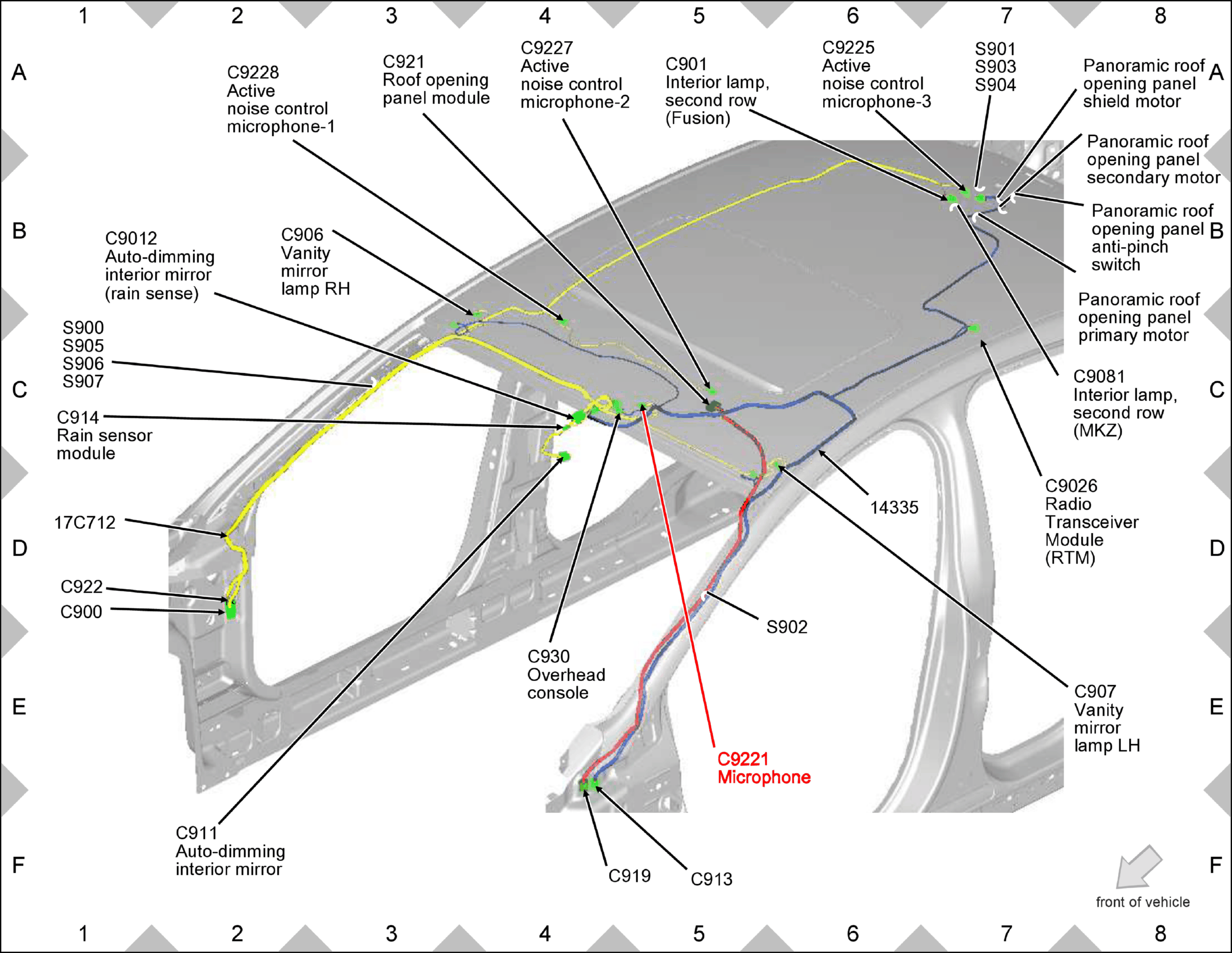

Fig 1: Microphone Components Location

GFDW81648

Courtesy of FORD MOTOR COMPANY
