Hydraulic solenoid valve, left front

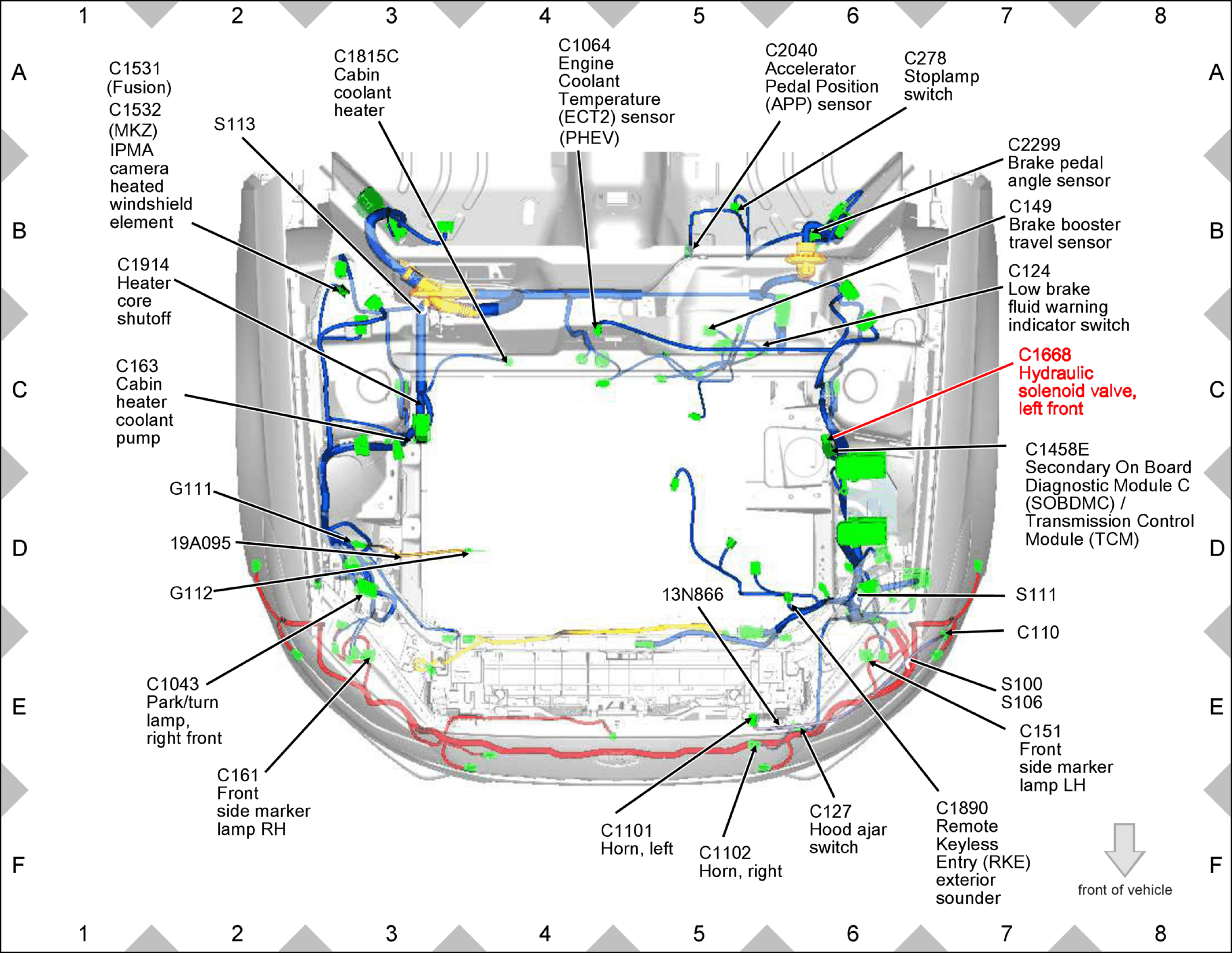

Fig 1: Hydraulic solenoid valve, left front Components Location

GFDW81605

Courtesy of FORD MOTOR COMPANY
