Heated seat module, rear

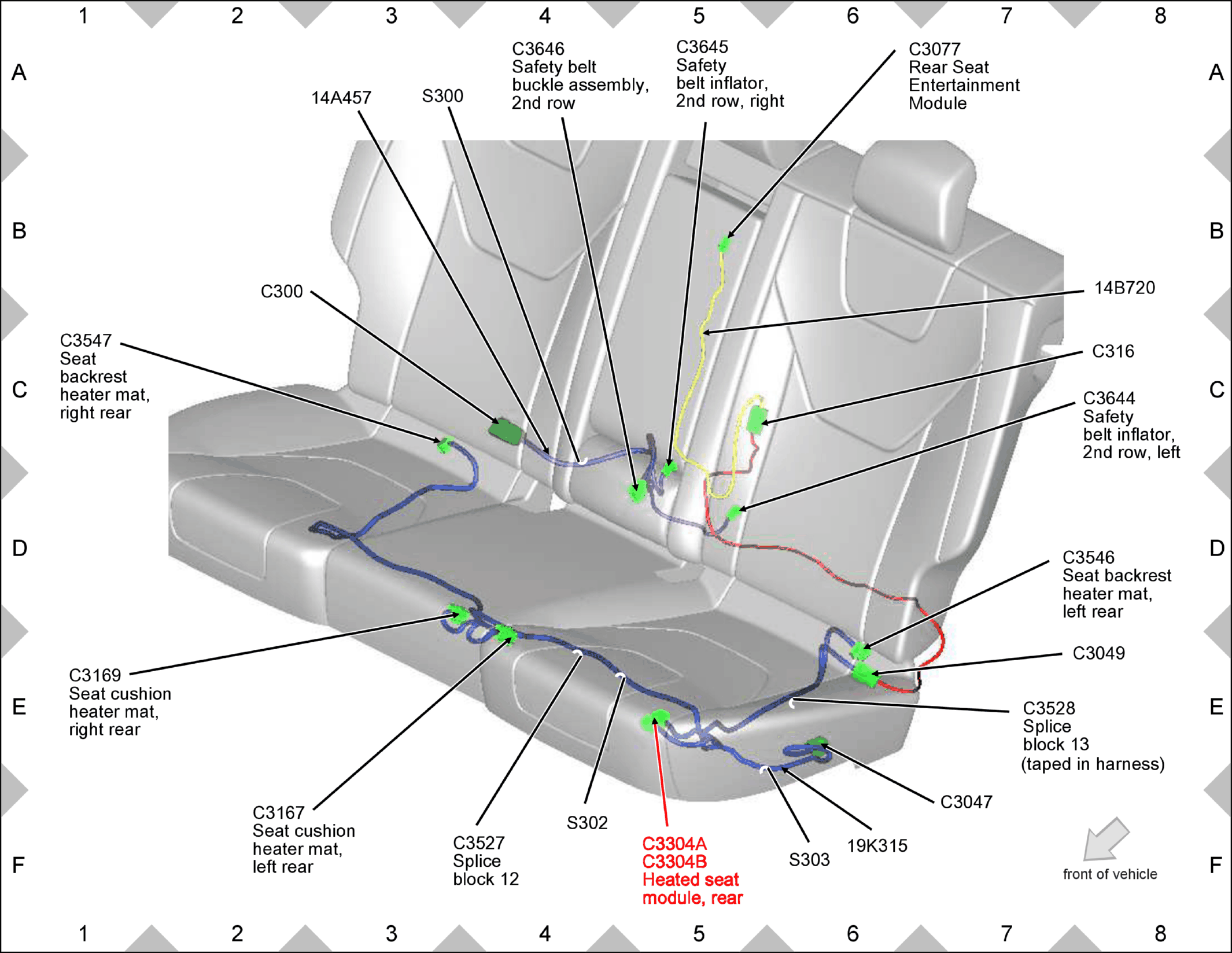

Fig 1: Heated seat module, rear Components Location

GFDW81579

Courtesy of FORD MOTOR COMPANY
