Head Up Display (HUD) module (Fusion)

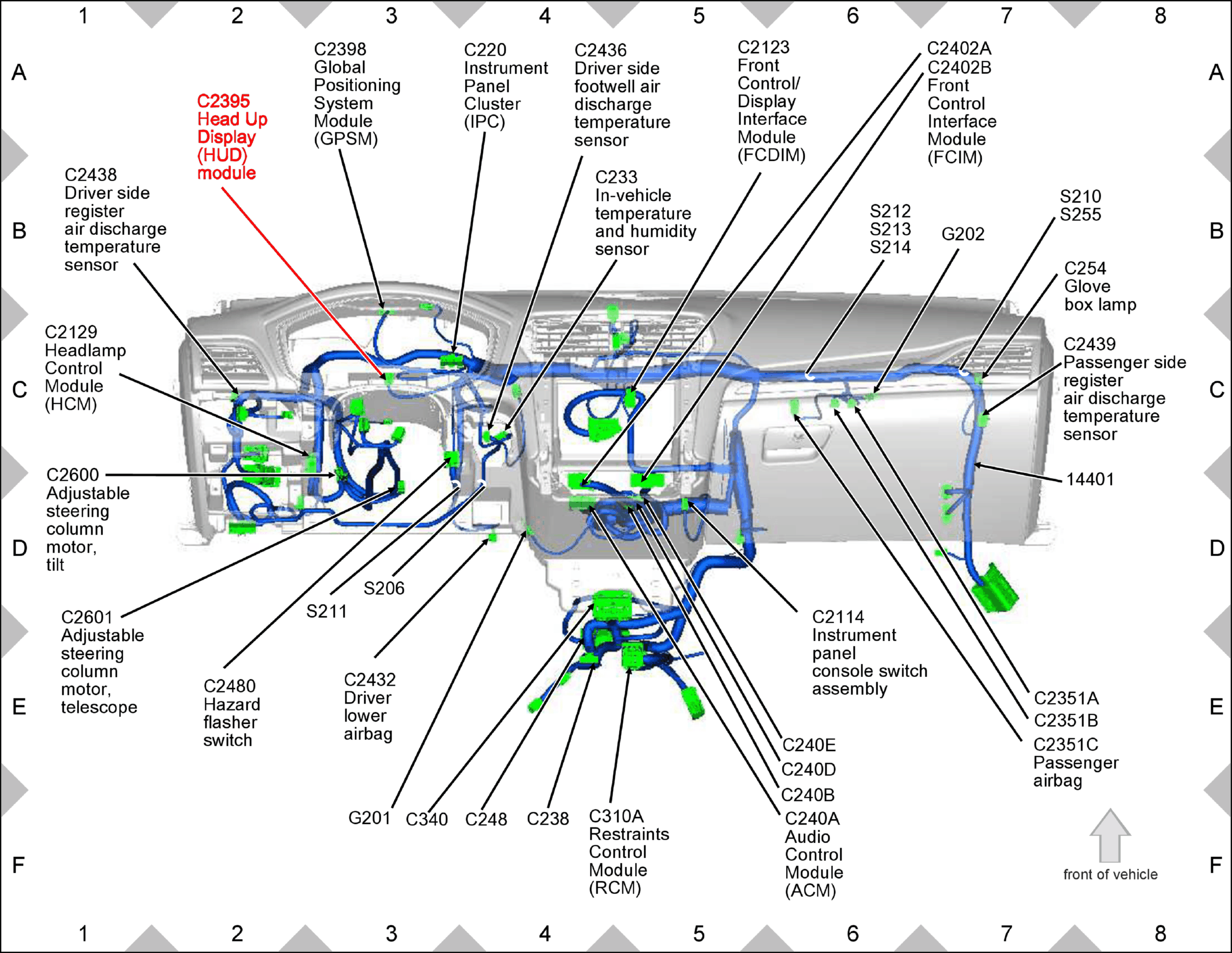

Fig 1: Head Up Display (HUD) module (Fusion) Components Location
GFDW81574Courtesy of FORD MOTOR COMPANY
