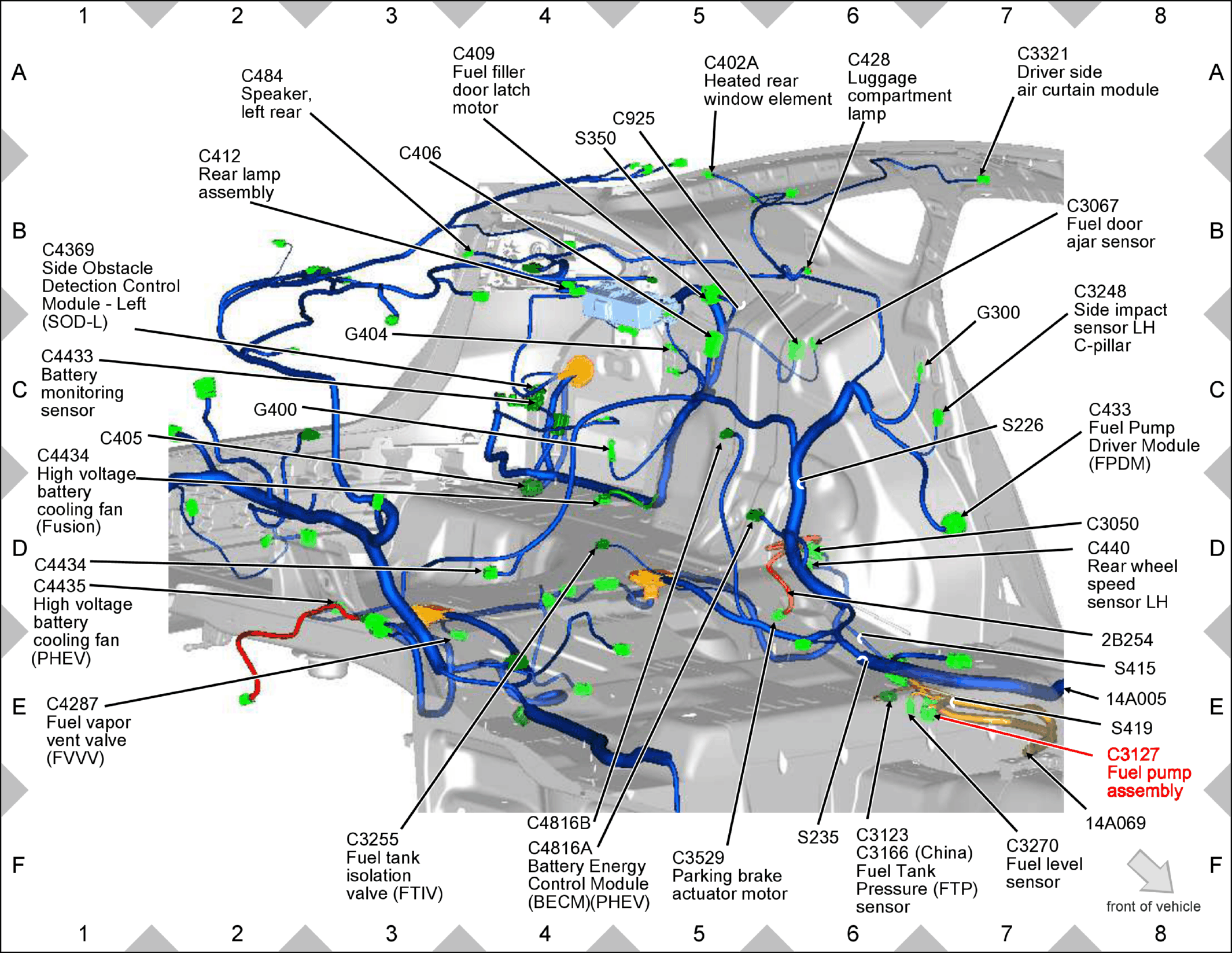

Home >> Ford >> 2018 >> Fusion Energi Titanium >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts - Fusion (Hybrid/ENERGI) >> Component Location Charts >> Fuel pump assembly (Fusion)
