Fuel door ajar sensor (Fusion)

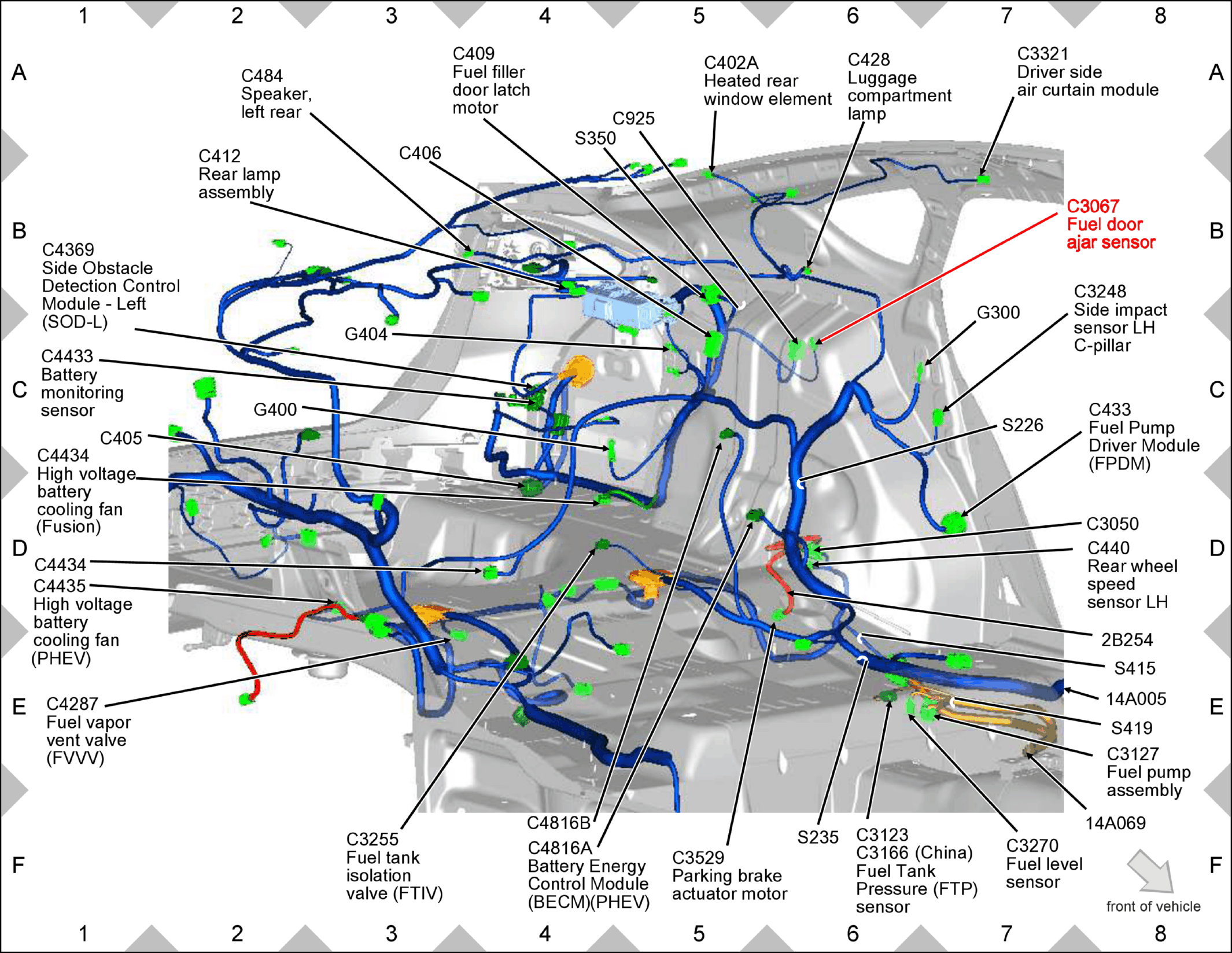

Fig 1: Fuel door ajar sensor (Fusion) Components Location

GFDW81539

Courtesy of FORD MOTOR COMPANY
