Fuel Tank Pressure (FTP) sensor (MKZ)

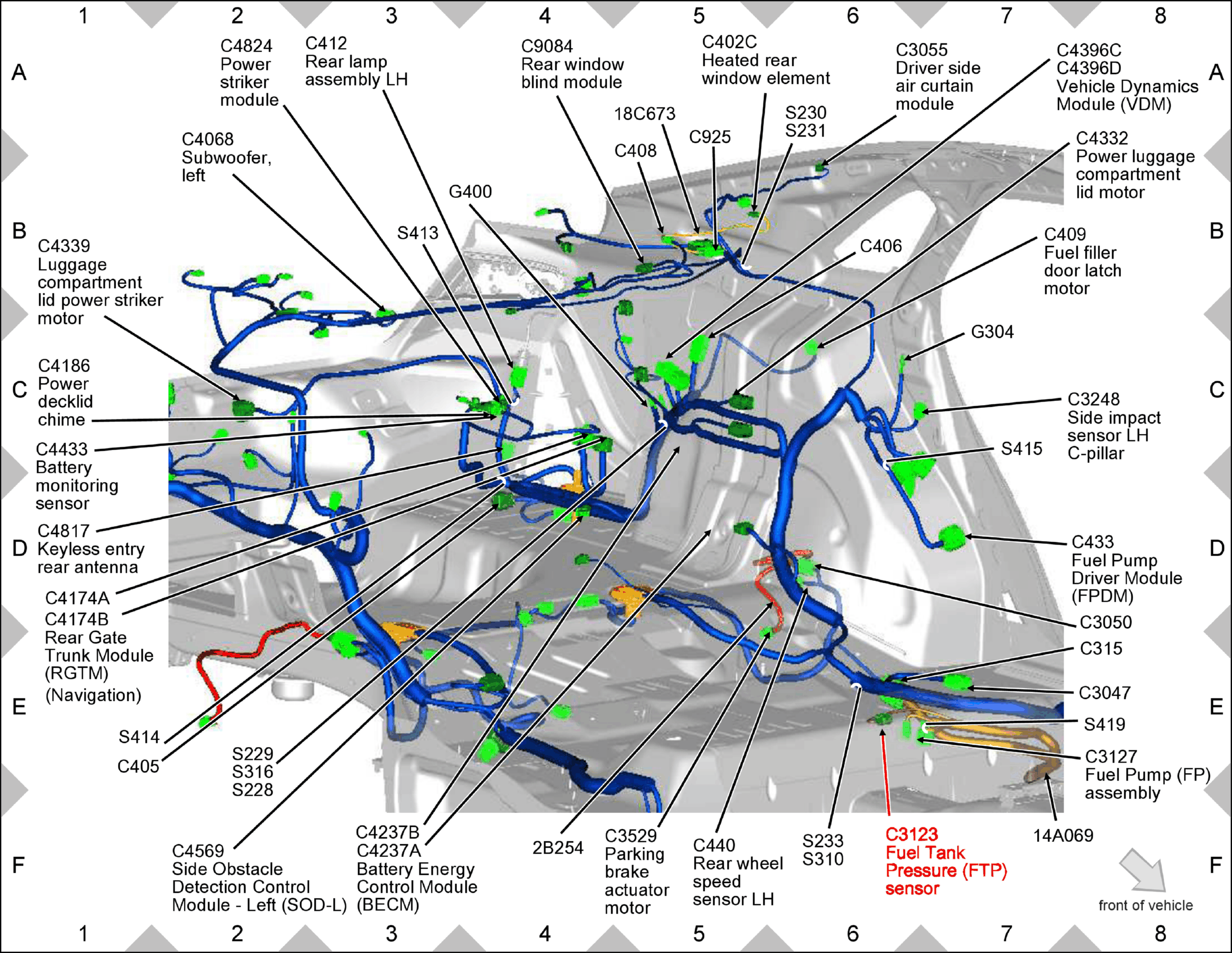

Fig 1: Fuel Tank Pressure (FTP) sensor (MKZ) Components Location

GFDW81556

Courtesy of FORD MOTOR COMPANY
