Fuel Pump Driver Module (FPDM) (Fusion)

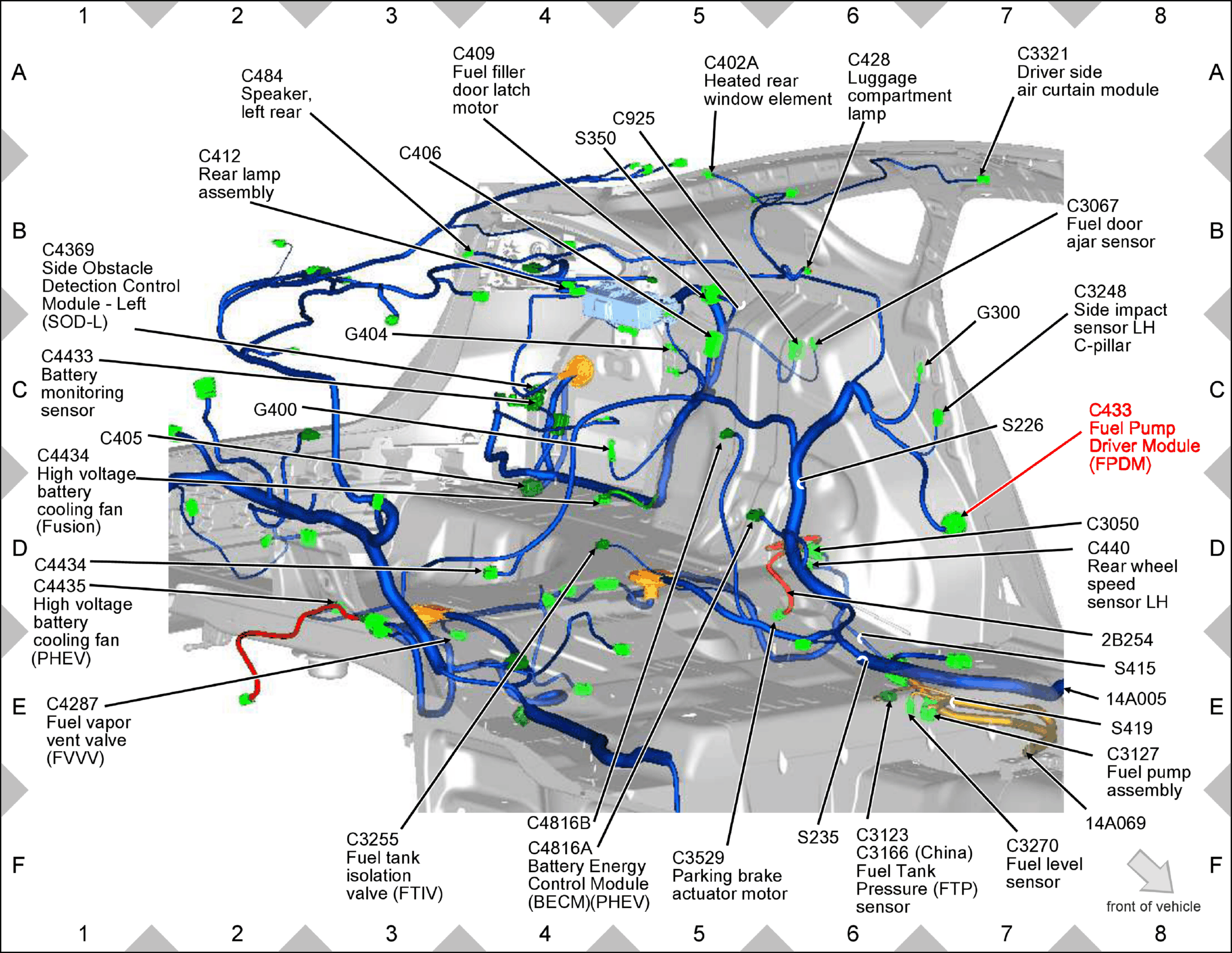

Fig 1: Fuel Pump Driver Module (FPDM) (Fusion) Components Location

GFDW81551

Courtesy of FORD MOTOR COMPANY
