OEM Component Harness Location Charts - Fusion (Hybrid/ENERGI)
>>
Component Location Charts
>>
Fuel Pump (FP) assembly (MKZ)
Fuel Pump (FP) assembly (MKZ)

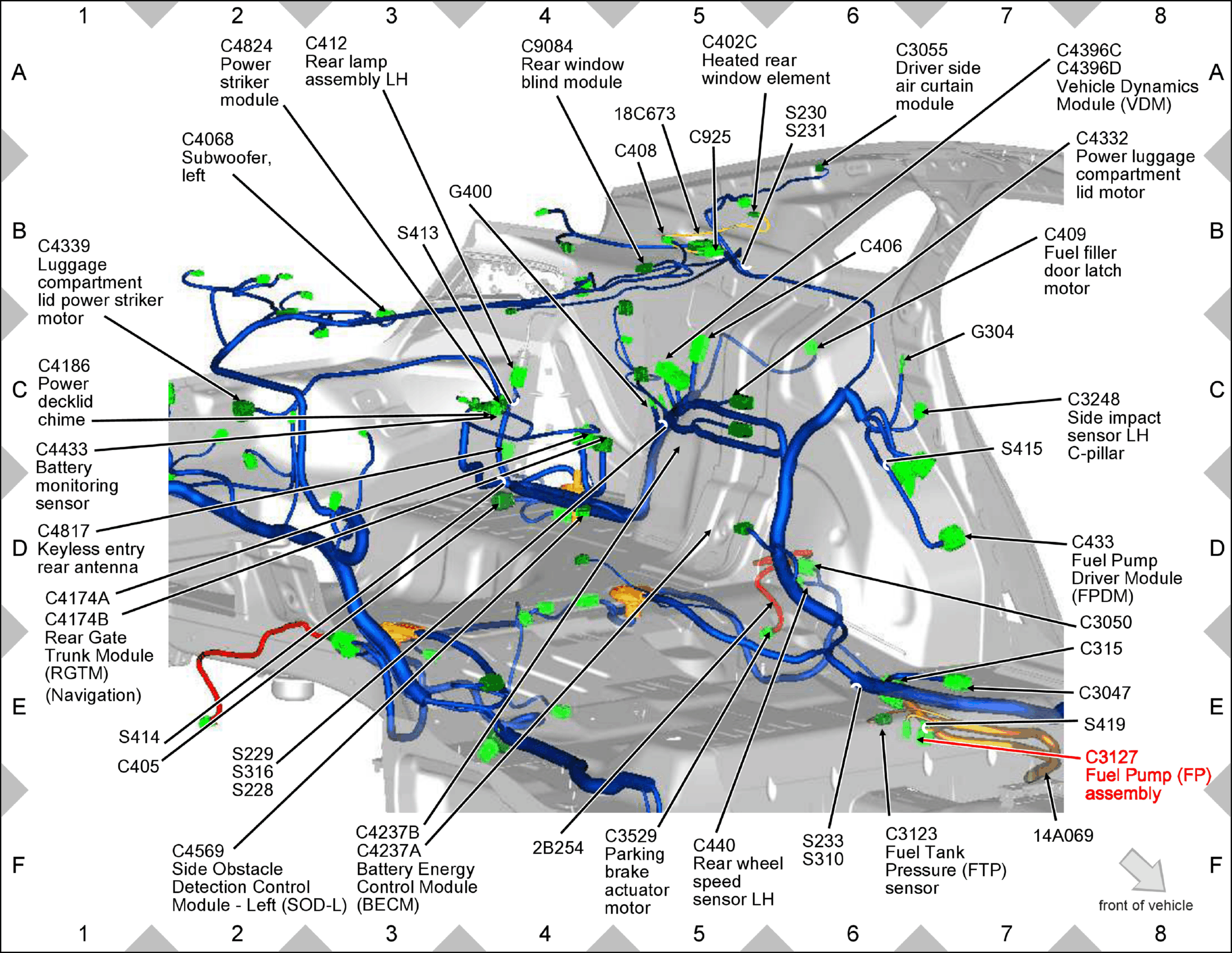

Fig 1: Fuel Pump (FP) assembly (MKZ) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
