Front seat climate control module [SCME]

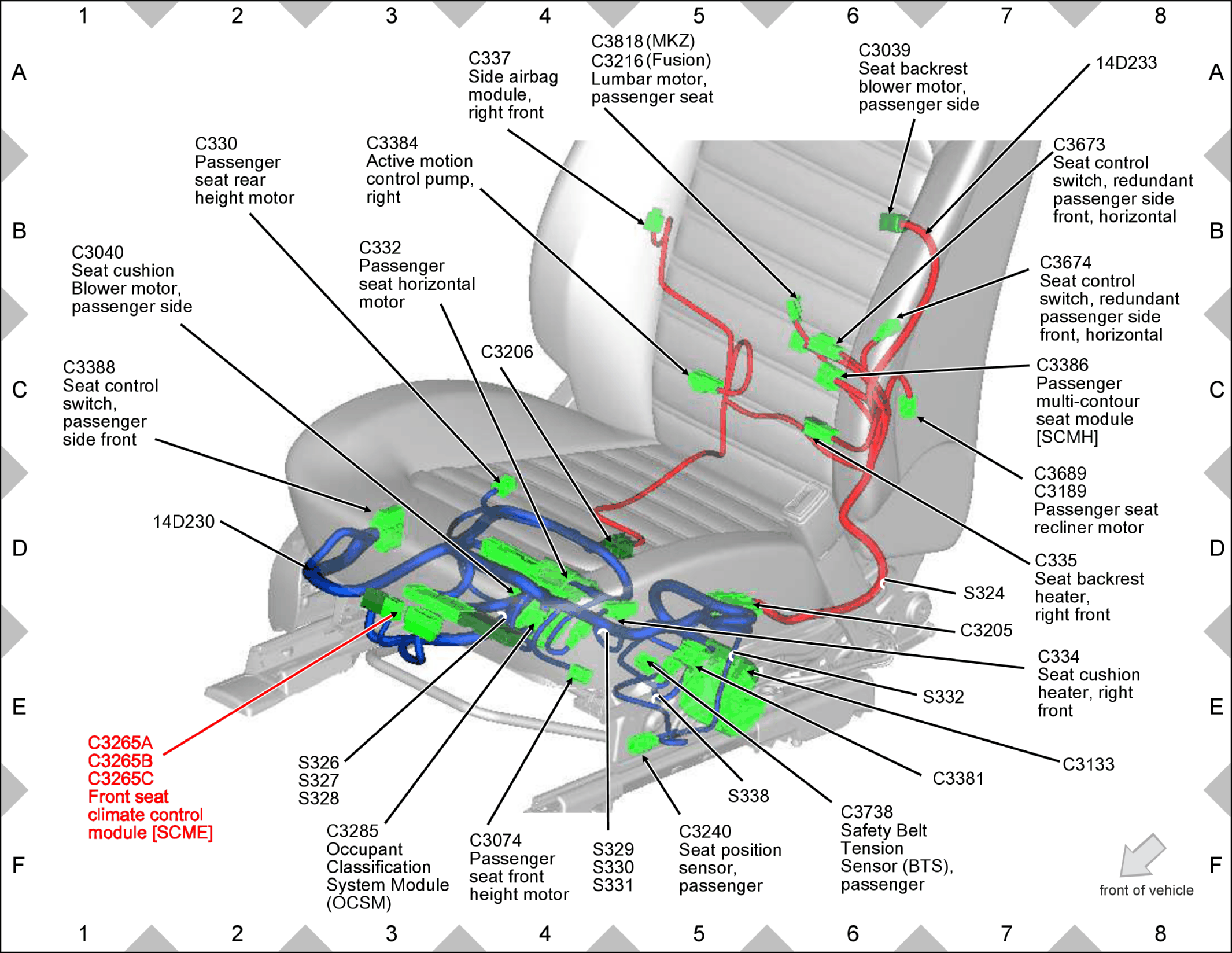

Fig 1: Front seat climate control module [SCME] Components Location

GFDW81534

Courtesy of FORD MOTOR COMPANY
