OEM Component Harness Location Charts - Fusion (Hybrid/ENERGI)
>>
Component Location Charts
>>
Front inner parking aid sensor LH
Front inner parking aid sensor LH

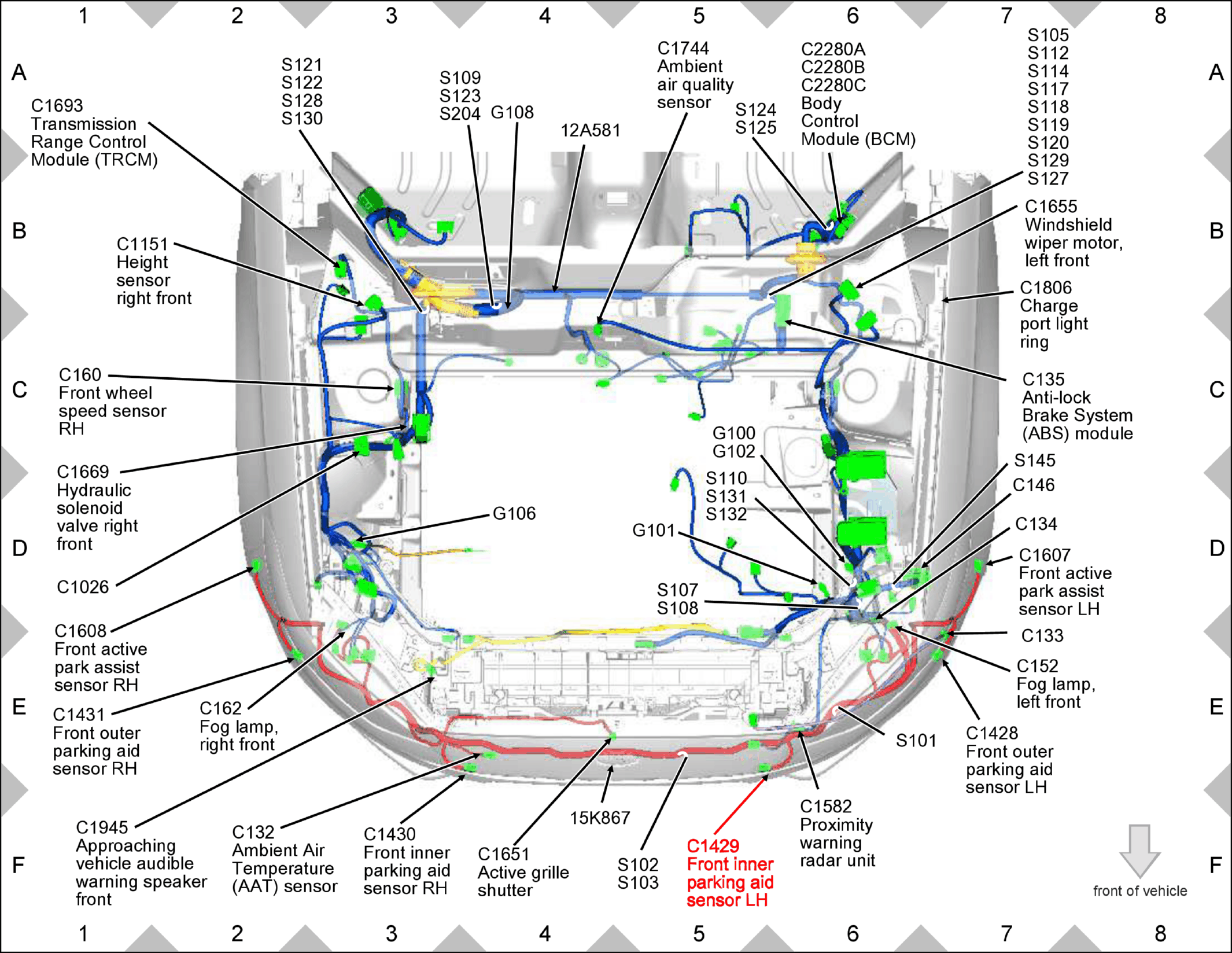

Fig 1: Front inner parking aid sensor LH Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
