Front door speaker LH (Fusion)

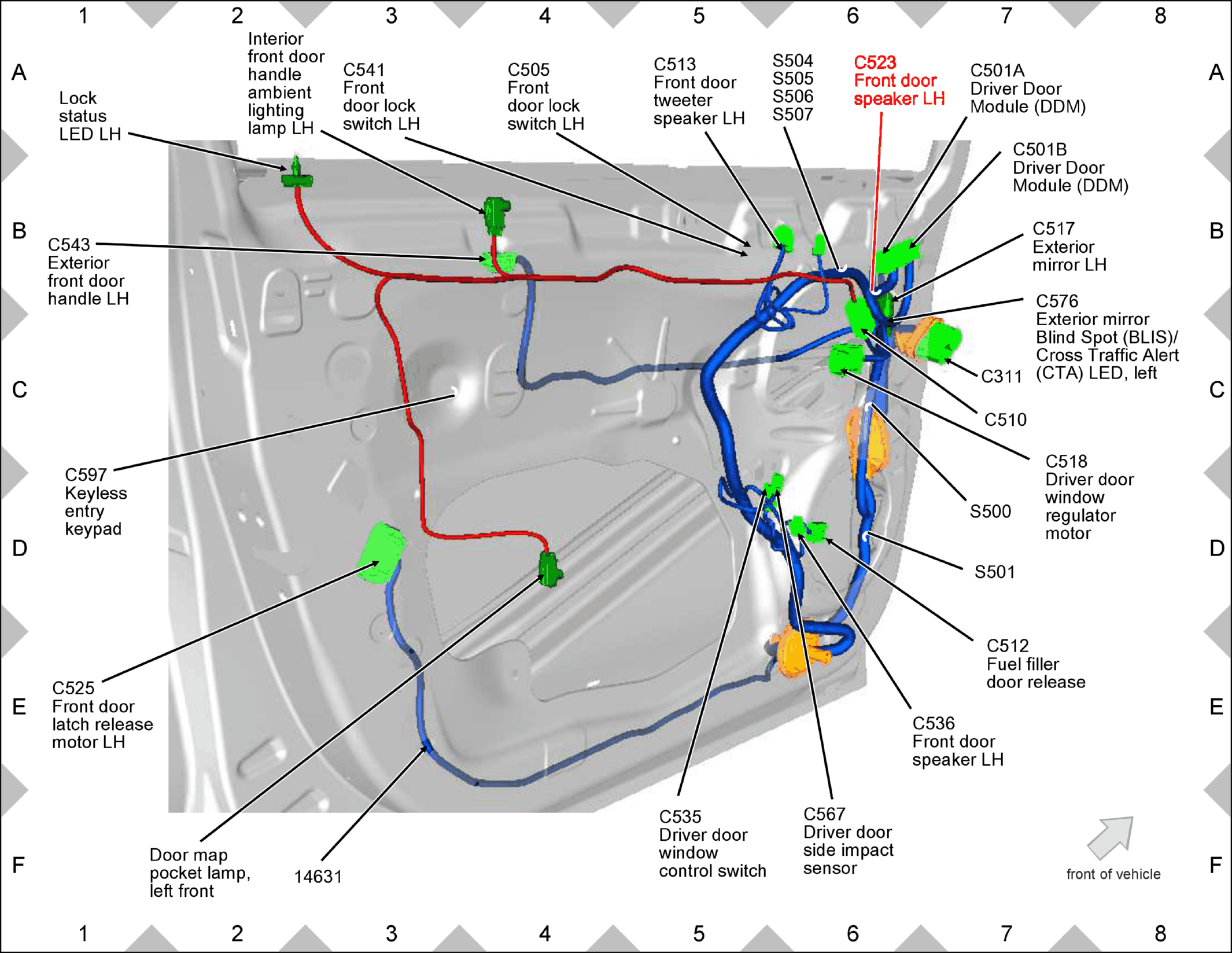

Fig 1: Front door speaker LH (Fusion) Components Location

GFDW81515

Courtesy of FORD MOTOR COMPANY
