OEM Component Harness Location Charts - Fusion (Hybrid/ENERGI)
>>
Component Location Charts
>>
Front Display Interface Module (FDIM) (MKZ)
Front Display Interface Module (FDIM) (MKZ)

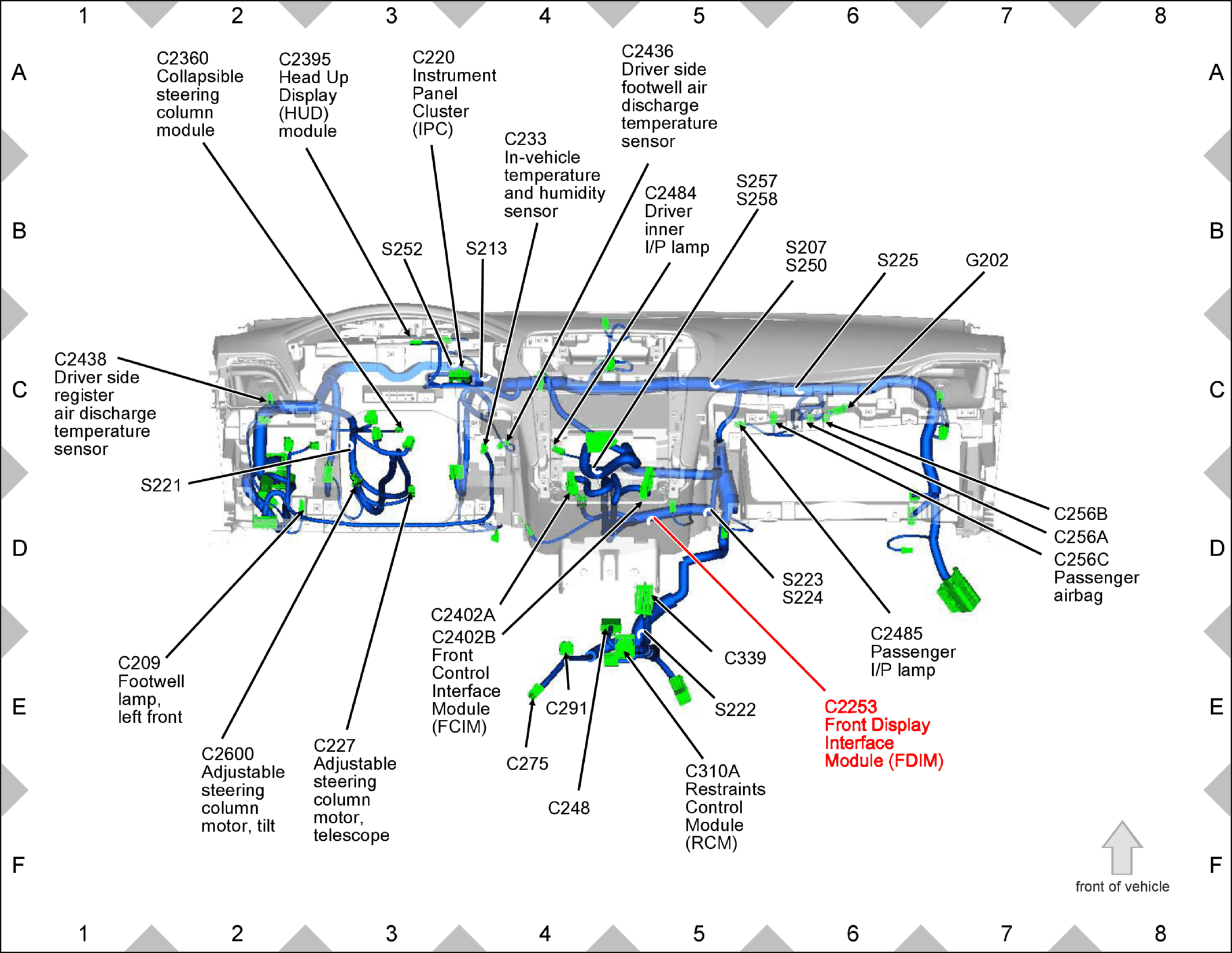

Fig 1: Front Display Interface Module (FDIM) (MKZ) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
