OEM Component Harness Location Charts - Fusion (Hybrid/ENERGI)
>>
Component Location Charts
>>
Front Control Interface Module (FCIM) (MKZ)
Front Control Interface Module (FCIM) (MKZ)

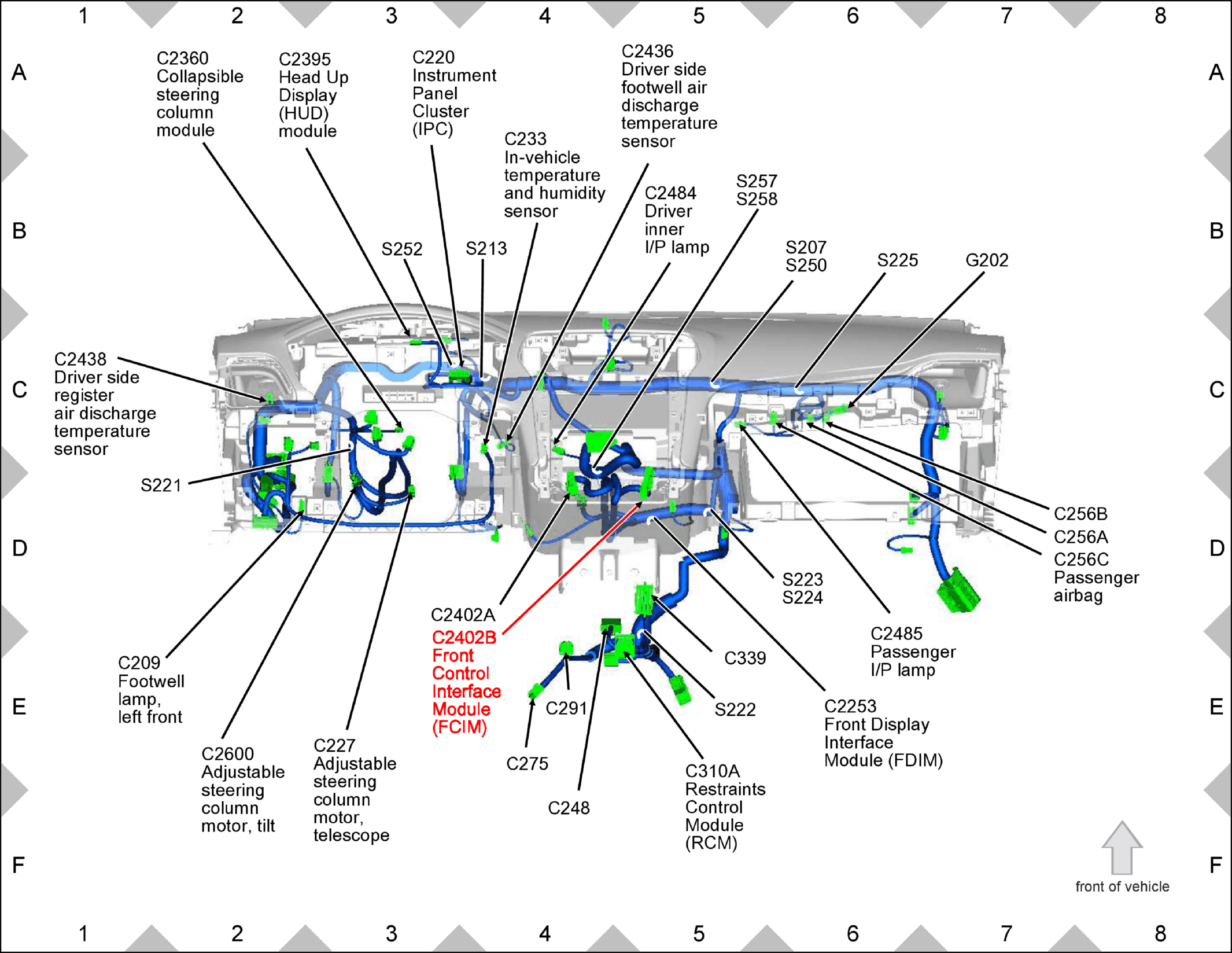

Fig 1: Front Control Interface Module (FCIM) (MKZ) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
