Exterior mirror Blind Spot (BLIS)/ Cross Traffic Alert (CTA) LED, left (Fusion)

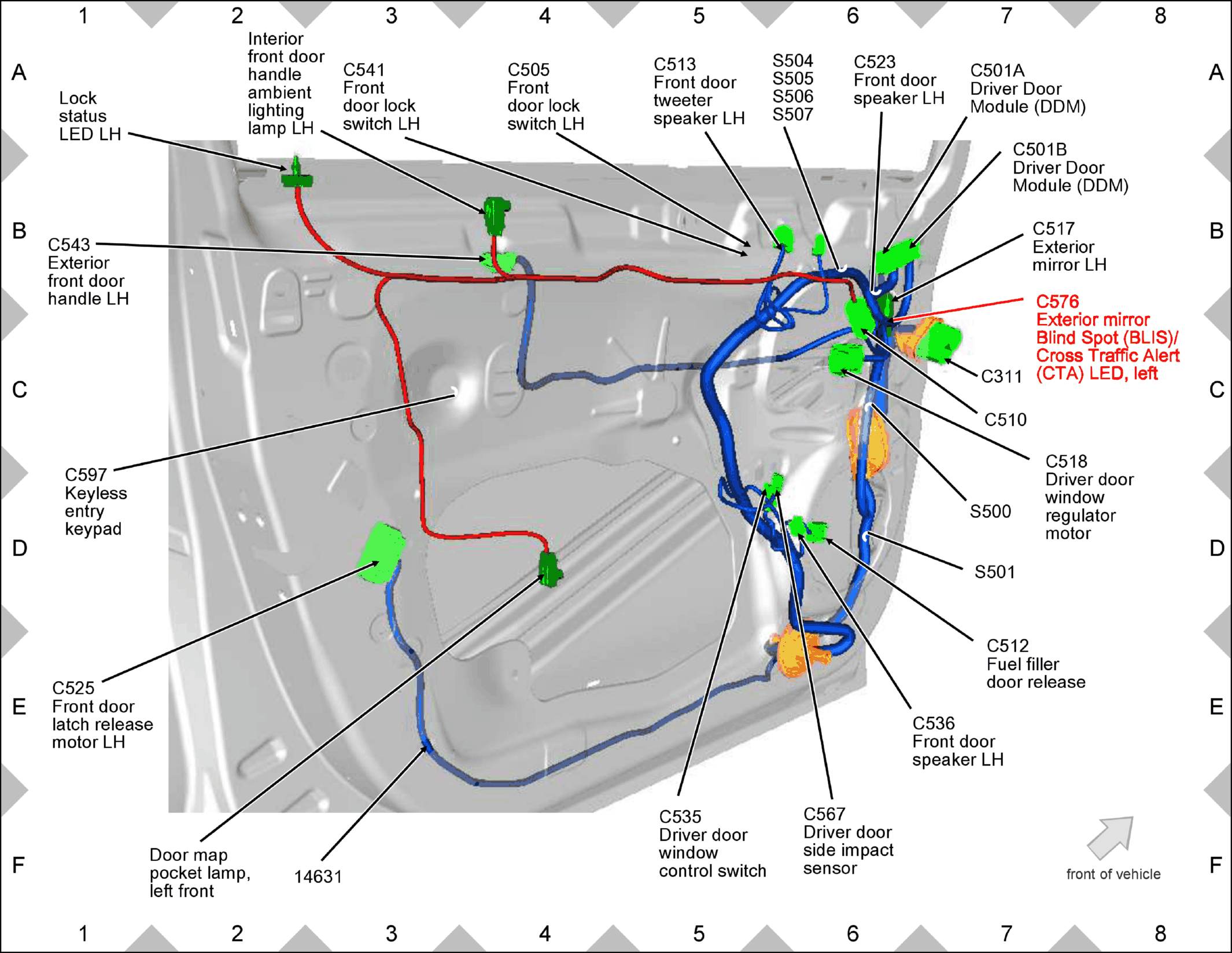

Fig 1: Exterior mirror Blind Spot (BLIS)/ Cross Traffic Alert (CTA) LED, left (Fusion) Components Location
GFDW81483Courtesy of FORD MOTOR COMPANY
