Engine Coolant Temperature (ECT2) sensor (PHEV)

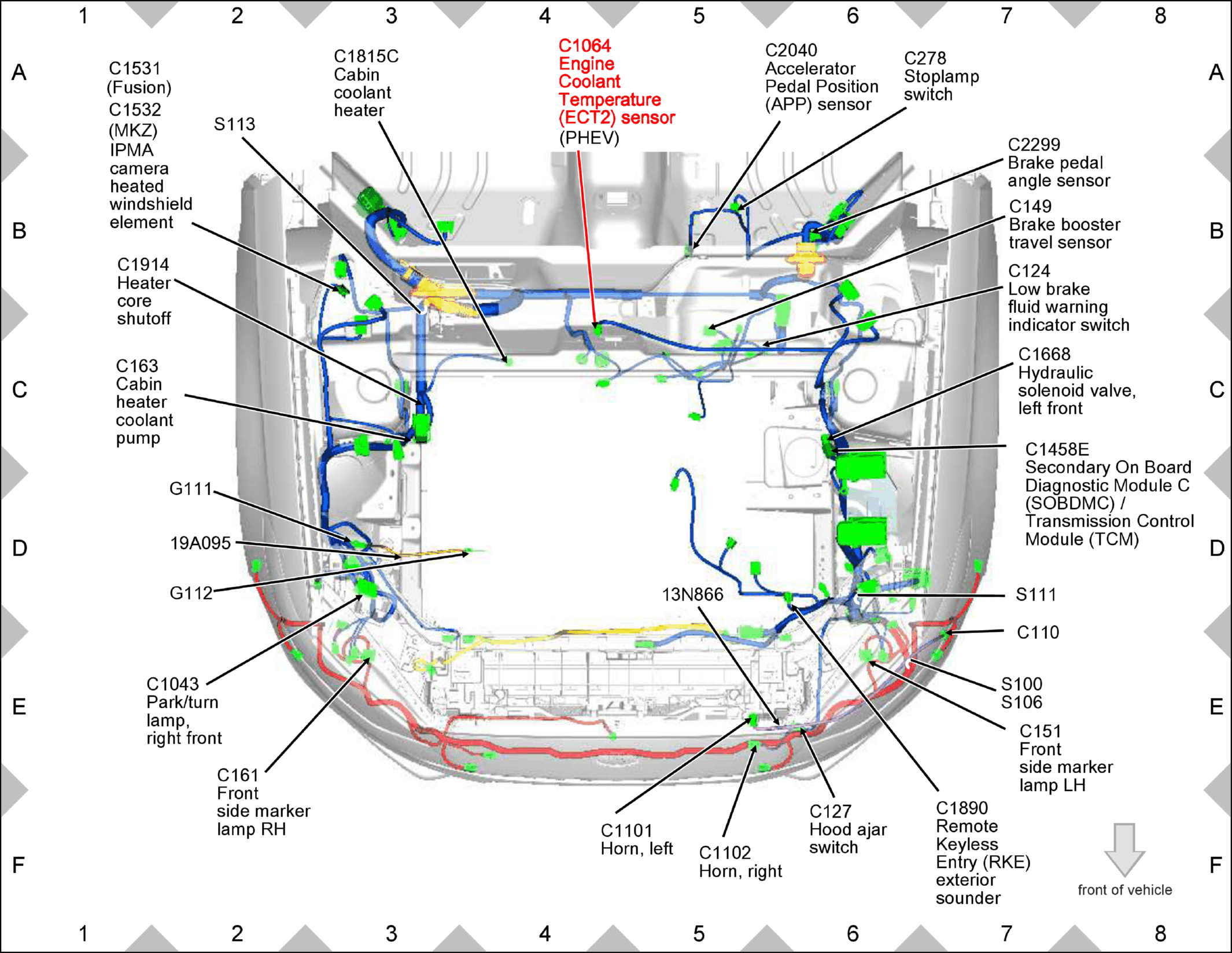

Fig 1: Engine Coolant Temperature (ECT2) sensor (PHEV) Components Location

GFDW81467

Courtesy of FORD MOTOR COMPANY
