OEM Component Harness Location Charts - Fusion (Hybrid/ENERGI)
>>
Component Location Charts
>>
Driver temperature door actuator
Driver temperature door actuator

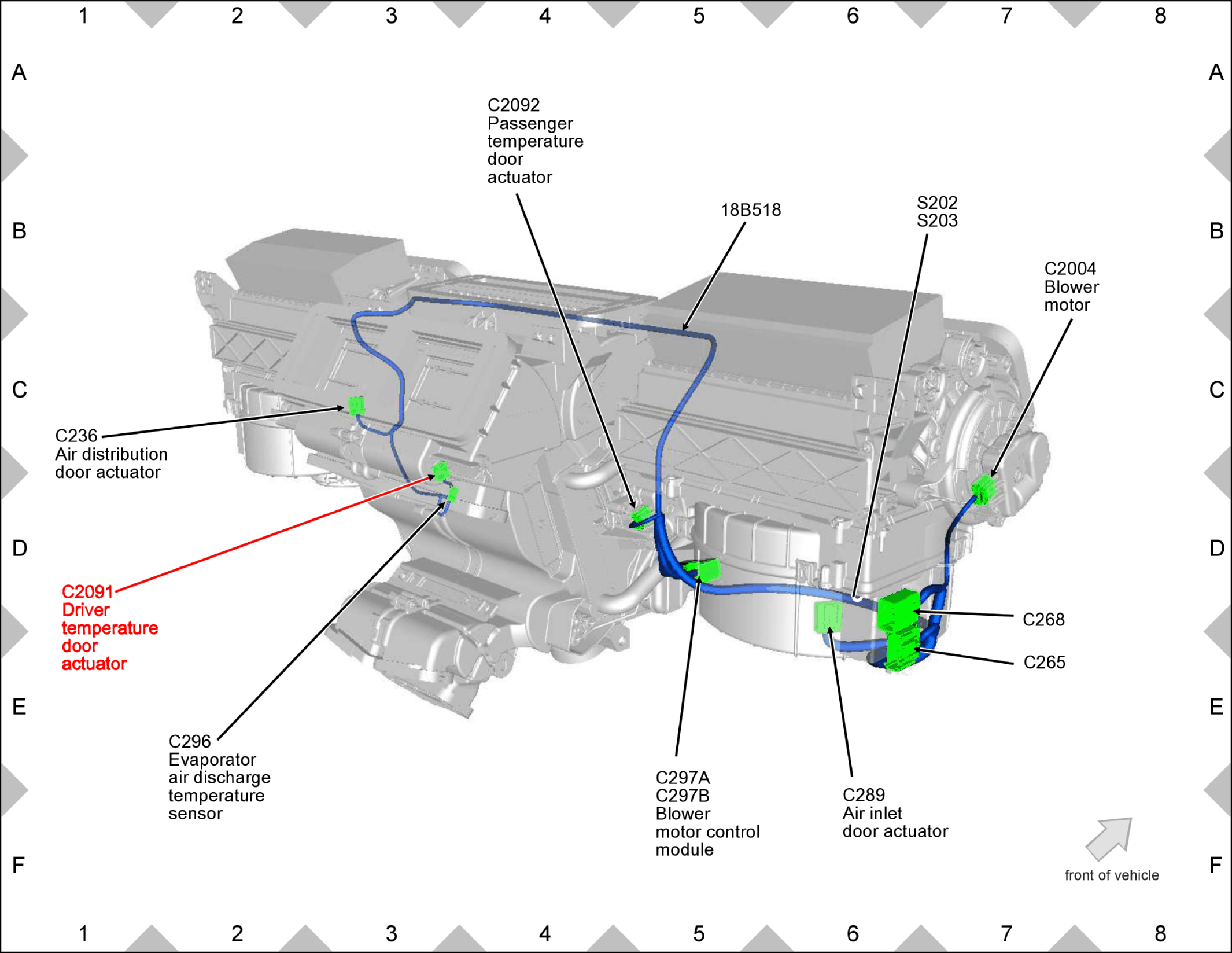

Fig 1: Driver temperature door actuator Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
