OEM Component Harness Location Charts - Fusion (Hybrid/ENERGI)
>>
Component Location Charts
>>
Driver outer I/P lamp (MKZ)
Driver outer I/P lamp (MKZ)

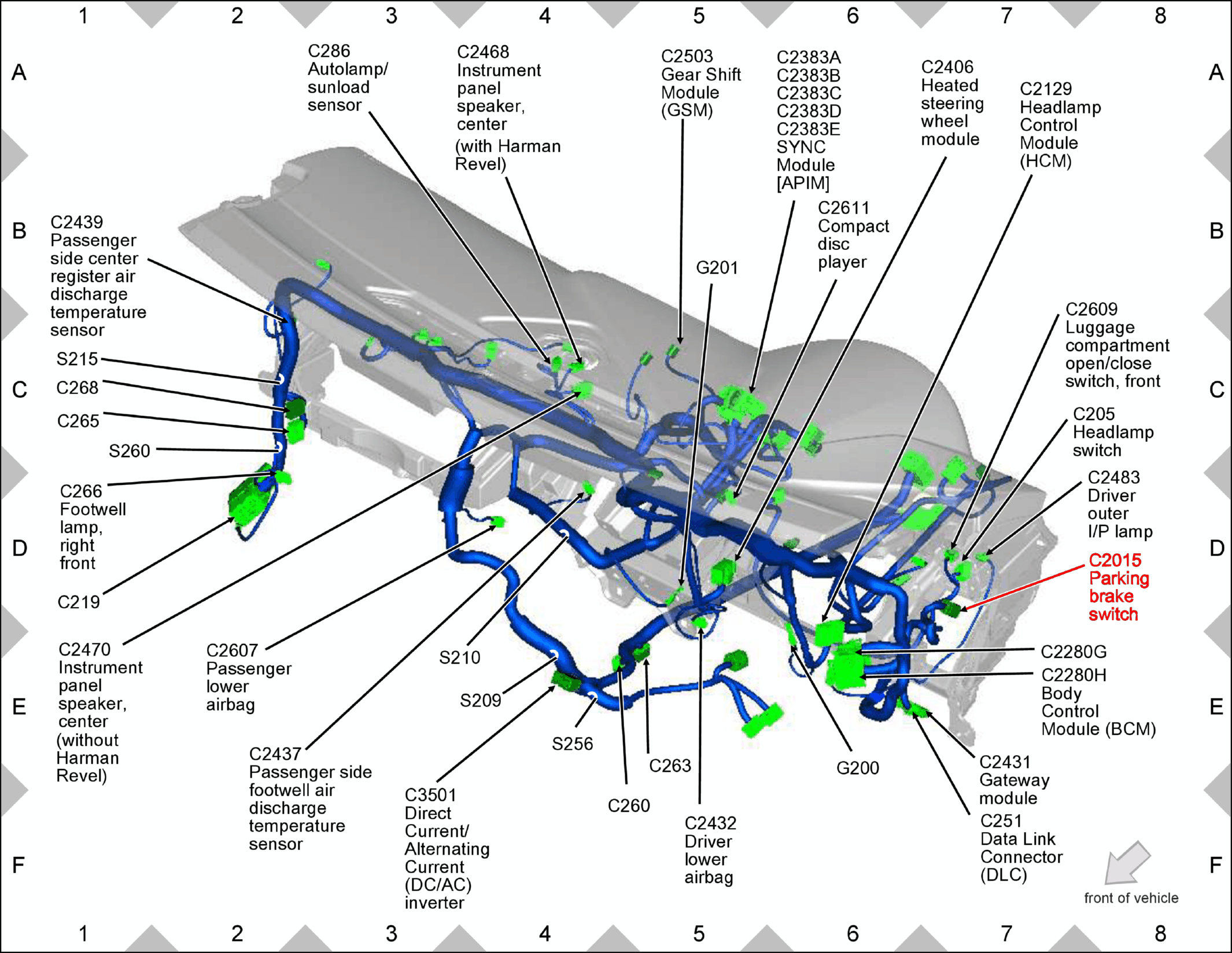

Fig 1: Driver outer I/P lamp (MKZ) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
