Driver multi-contour seat module [SCMG]

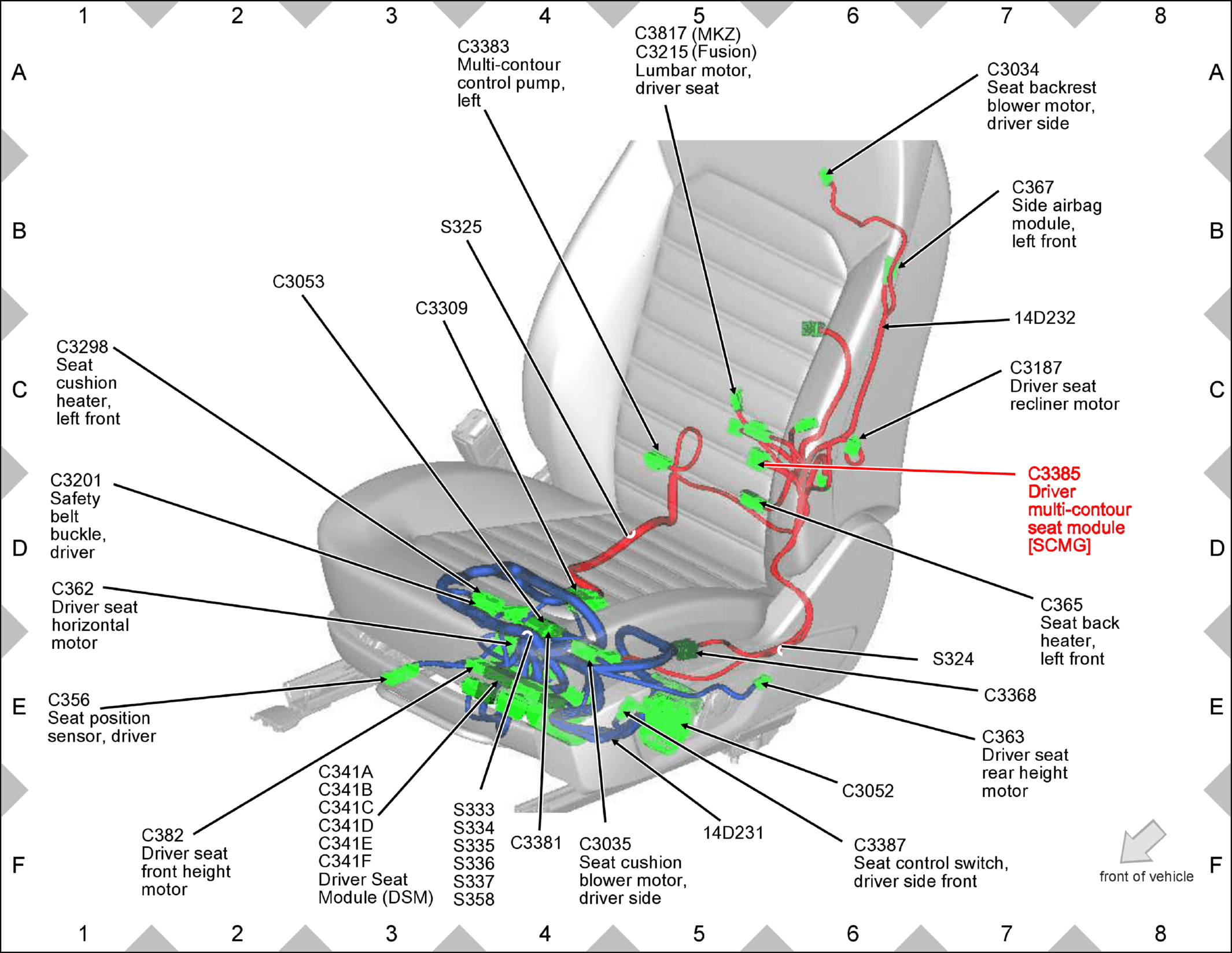

Fig 1: Driver multi-contour seat module [SCMG] Components Location

GFDW81449

Courtesy of FORD MOTOR COMPANY
