OEM Component Harness Location Charts - Fusion (Hybrid/ENERGI)
>>
Component Location Charts
>>
Driver Seat Module (DSM)
Driver Seat Module (DSM)

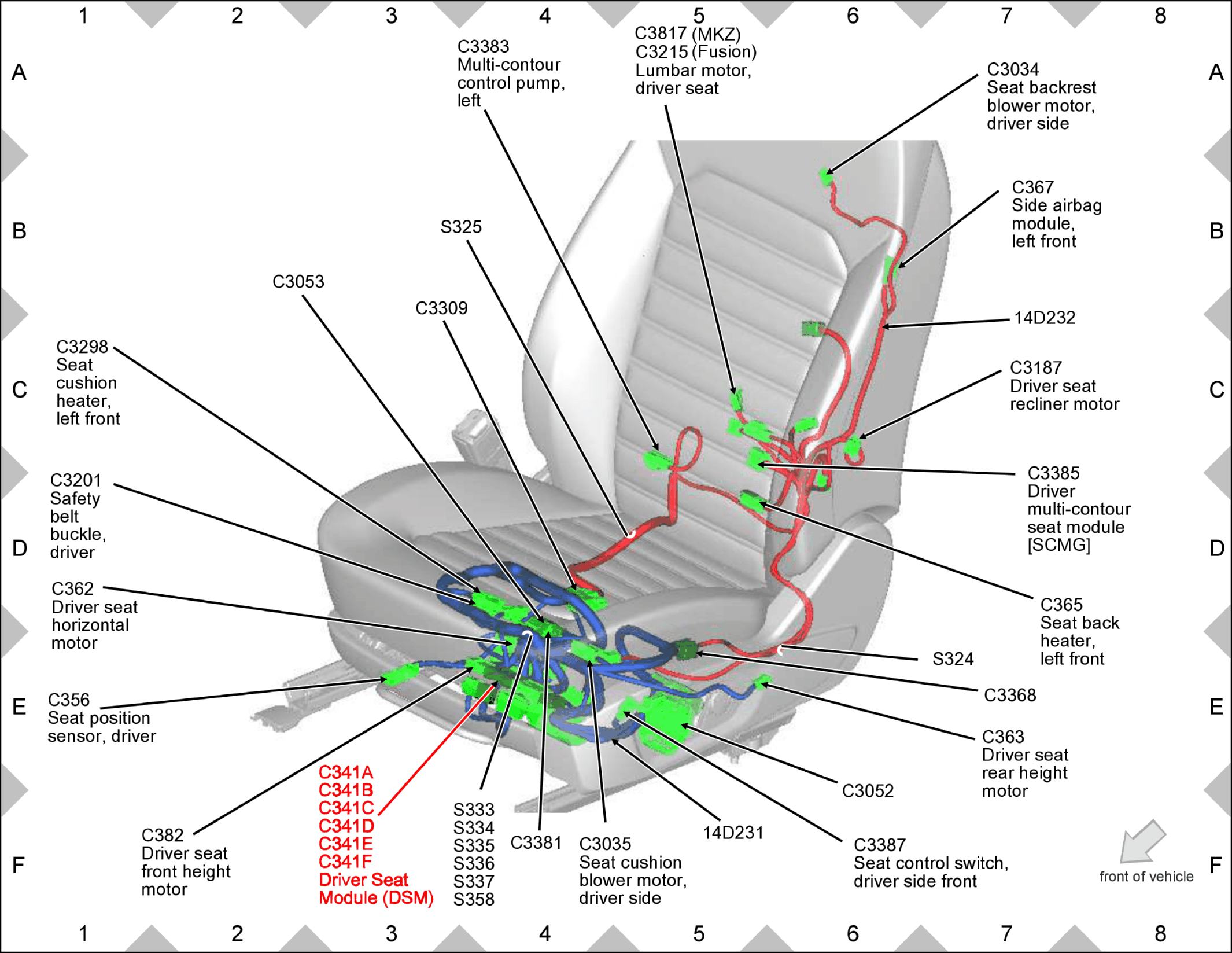

Fig 1: Driver Seat Module (DSM) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
