OEM Component Harness Location Charts - Fusion (Hybrid/ENERGI)
>>
Component Location Charts
>>
Cabin heater coolant pump
Cabin heater coolant pump

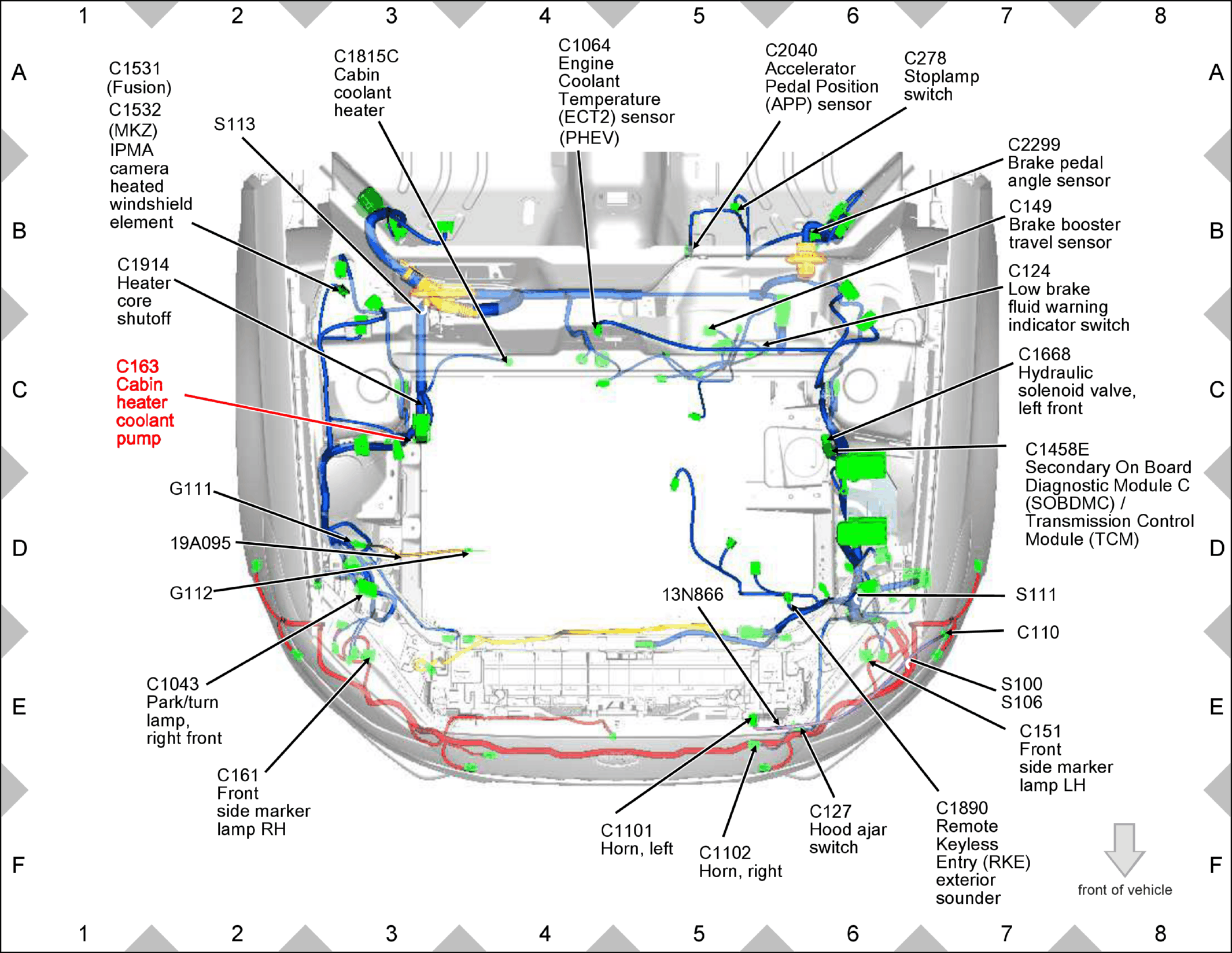

Fig 1: Cabin heater coolant pump Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
