OEM Component Harness Location Charts - Fusion (Hybrid/ENERGI)
>>
Component Location Charts
>>
Body Control Module (BCM) (MKZ)
Body Control Module (BCM) (MKZ)

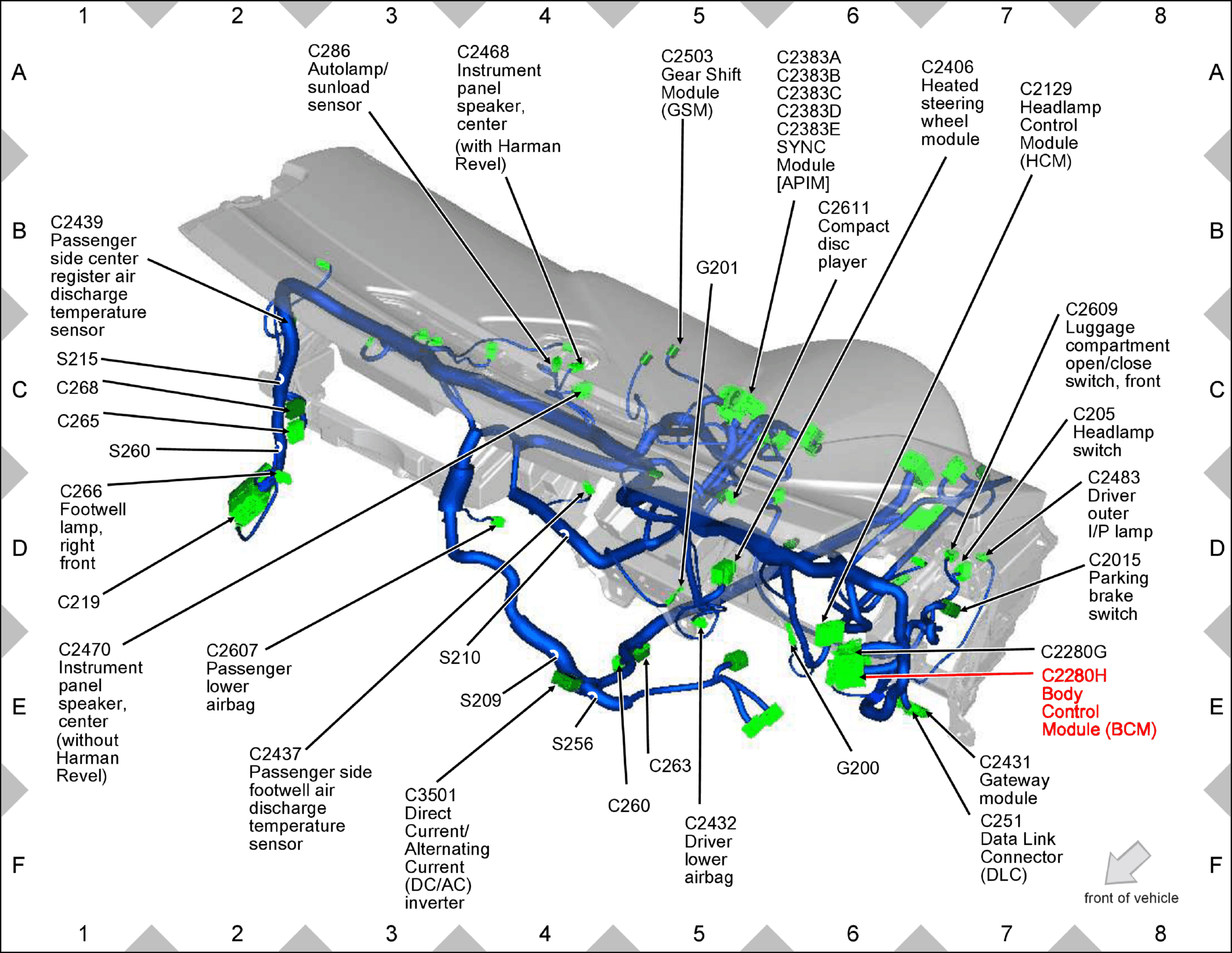

Fig 1: Body Control Module (BCM) (MKZ) Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
