Battery Energy Control Module (BECM) (PHEV)

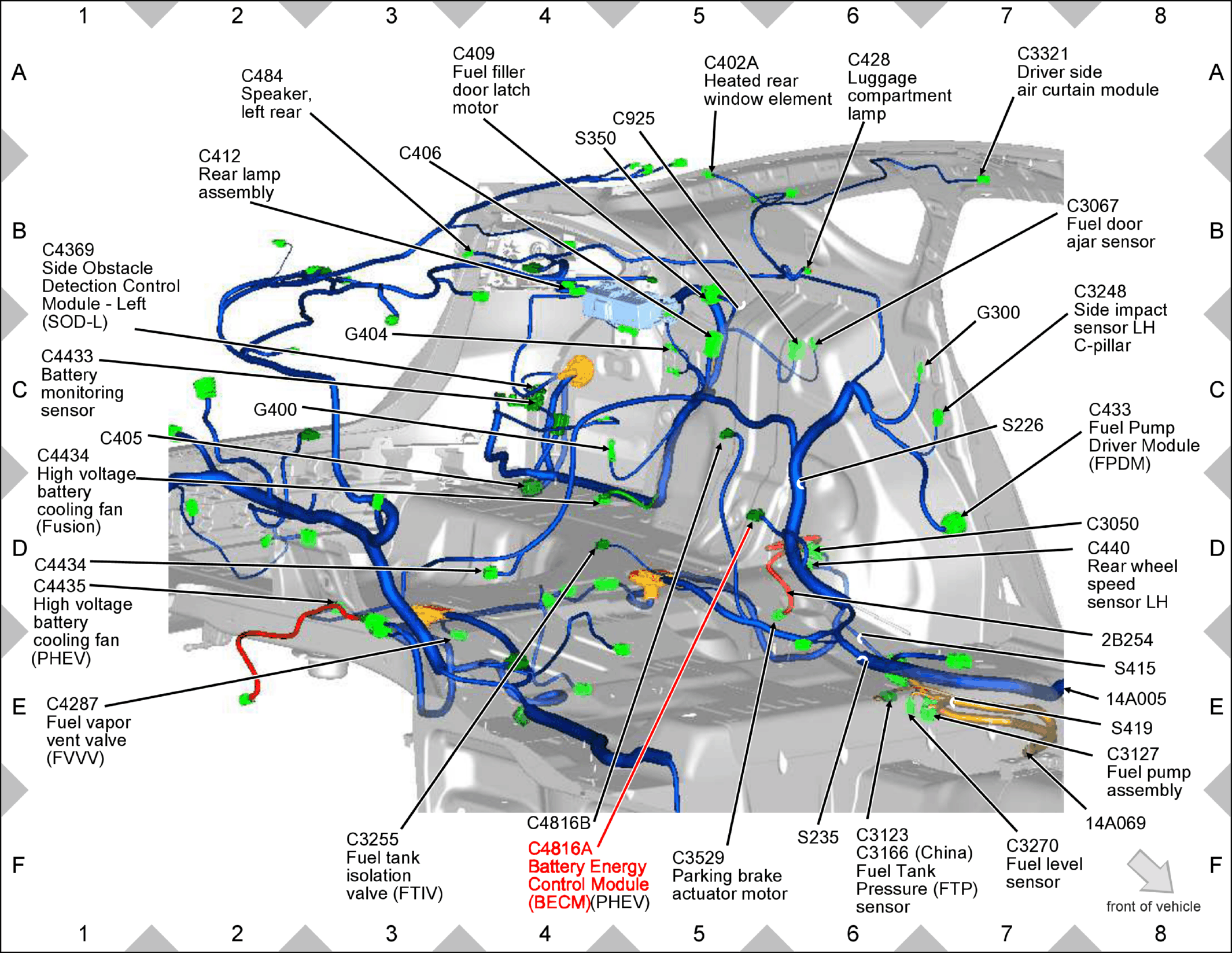

Fig 1: Battery Energy Control Module (BECM) (PHEV) Components Location

GFDW81390

Courtesy of FORD MOTOR COMPANY
